Surface Mounted Roller Bolt Night Latch - Tested For Use On FD30 Fire Doors - 90mm Case Depth (60mm Backset) - Polished Chrome

Catalogue Number:
15192
Full Description
Product Name Price Qty
15192.1 - Surface Mounted Roller Bolt Night Latch - Tested For Use On FD30 Fire Doors - 90mm Case Depth (60mm Backset) - Supplied With 3 x Keys - Polished Chrome - Each
£34.42 £28.68

Per Each
Enquire Now
  • Roller bolt night latch - also known as "Roller Bolt Yale lock"

Finish

  • Polished chrome

Dimensions


15192.1
Backset - (Distance from edge of door to centre of cylinder)
60mm
Case Width
92mm
Case Height
63mm
Case Depth
26mm
Lever Projection From Case
15mm
Cylinder Diameter
32mm
Cylinder Ring Outside Diameter
45mm

Important Info Before You Buy

  • For use on inward opening doors only
  • Roller bolt night latches are used in place of a standard "Yale" style night latch, in multi-place occupancies i.e. flats with communal front door.
  • Conforms to current fire regulations concerning means of escape in event of fire
  • When you pull the lever down (clockwise) on the lock case the roller bolt extends in to the keep on the frame to keep the door closed.

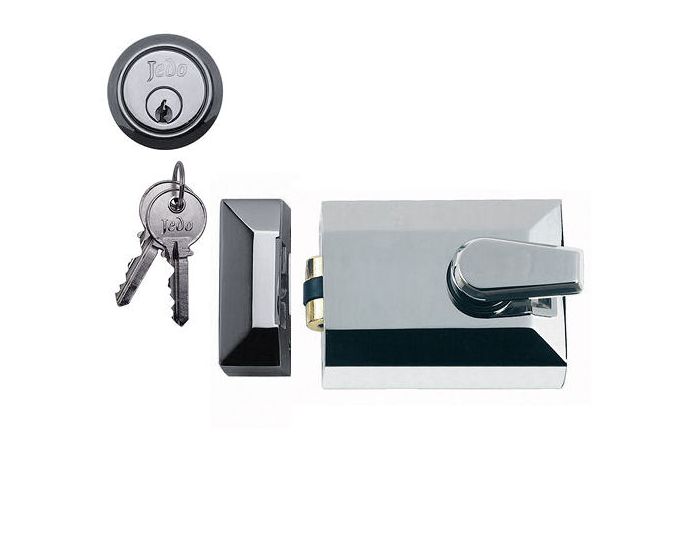

  • When the lever is in the Horizontal position (shown in the image) the roller bolt is withdrawn an the night latch is in open position
  • Roller bolt is withdrawn from outside and by quarter turn of key in one direction and engaged by turning the key a quarter turn the other direction
  • This means the door can only be locked by someone physically turning the key or handle hence you can't get locked out just by the door closing
  • Suitable for doors up to 54mm thickness
  • Comes with cylinder, cylinder ring and three keys
More Information
Item 15192
Item Code 15192
Finish Polished Chrome
Dimensions Case 92mm x 63mm - Backset To Key Hole - 60mm
Fire Rated FD30 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
