Sash Stops - 19mm - Sliding Sash Windows Locks - Polished Nickel

Catalogue Number:
49089
Full Description
Product Name Price Qty
49089.1 - Sash Stops - 19mm - Sliding Sash Windows Locks - Polished Nickel - Pack Of 4
£61.15 £50.96

Per Pack Of 4
Enquire Now
  • Sliding sash window stop locks

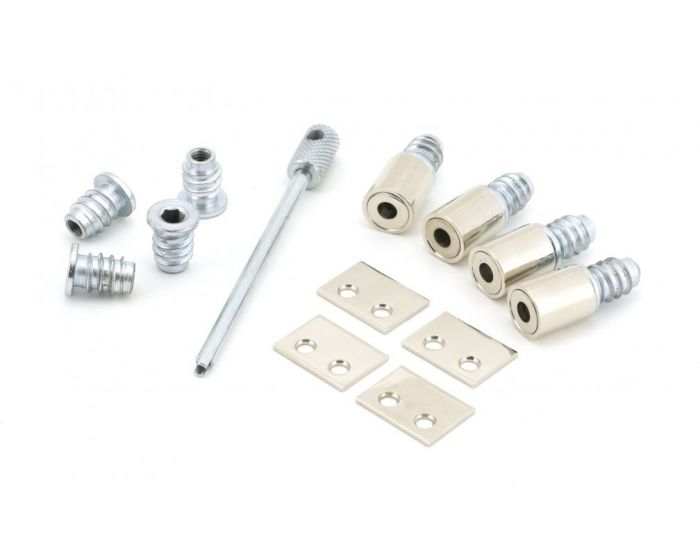

  • Pack of two stops supplied with four inserts, four strike plate and one key
  • Strike plates are fitted to the top of the bottom sash to prevent damage
  • Ideal for meeting insurance requirements for locking sliding sash windows.
  • Two inserts provided per stop allows the sash window to be locked in the closed or in the open position.
  • The threaded stops are screwed into inserts located in the top sash by use of key, this prevents ("stops") the sashes passing Pair other, hence the window is locked and can not be opened.

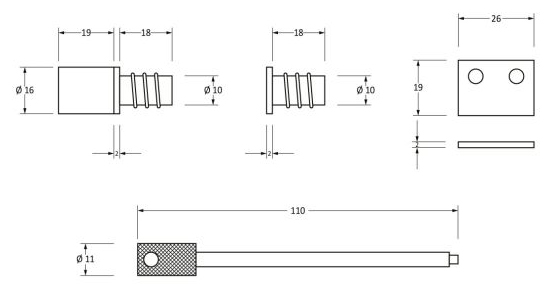

Size Details

Sash-Stops-Sliding-Sash-Windows-Locks-Diagram

Base Material

  • Made from solid brass.

Finish Details

  • Polished Nickel

Fixings

  • Pair stop comes supplied with two inserts to screw into.
  • Sash window can be locked in the closed position by screwing the sash stop into insert 1 (see below diagram)
 Diagram showing a sliding sash window in closed position locked via a sash stop



  • The sliding sash window can be locked in the open position for ventilation, by screwing the sash stop into insert 2 (see below diagram)
 Diagram showing a sliding sash window in the open position for ventilation, locked via a sash stop

Usage

  • Suitable for use with wooden sliding sash windows
  • The inserts are fitted into the side rail of the top sash

Unit Of Sale

  • Sold as a pack of 4 - (Includes 4 x sash stops 4 x inserts 1 x key)
More Information
Item 49089
Item Code 49089
Finish Polished Nickel
Dimensions Stop Barrel: 19mm x 16mm
Sold Per Pack Of 4
Availability To Order 2 - 3 Working Days
Download PDF Data Sheet
