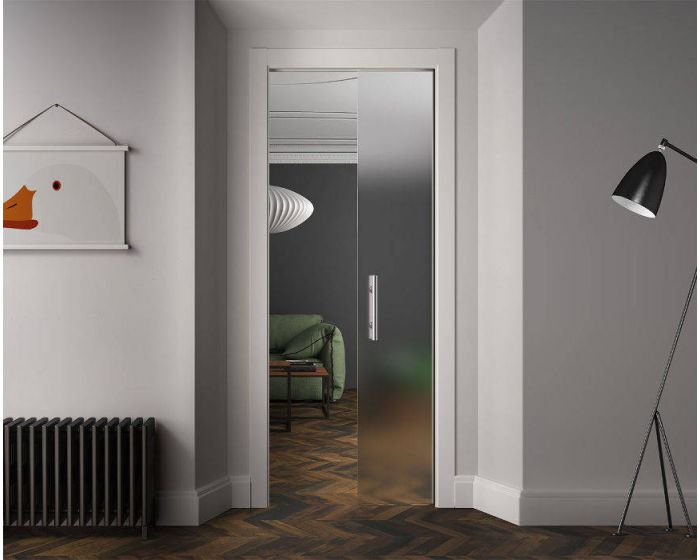

The Scrigno (pronounced Scree-nio)glass sliding door gear system uses a pre-fabricated cassette system to create a single sliding pocket door.
Unlike most other pocket door solutions available today, Scrigno systems come pre-fabricated. Just drop the supplied aluzinc cage into place, plaster over the opening and then you're ready to install the door of your choice on the hangers and sliding track provided.
Allows an interior door to slide and disappear into a "pocket" within the wall cavity.
Each set includes all the main components needed to install a long lasting, smooth running sliding door including a pre-made steel cassette pocket which is used to create the wall cavity or "pocket" for the door to slide into.
This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows glass doors between 8 - 10mm thick to be installed with a finished wall of 125 mm.
Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
Suitable for doors up to 120kg in weight.
Suitable for use with glass doors only - glass door not included.
The Scrigno system comes supplied complete with timber lining - jamb kits.
Accessories Available To Suit The Scrigno Single Pocket Door System
Soft close mechanism - to dampen softly close the sliding door. - (sold separately).
Self closing mechanism - automatically pulls the door closed each time the door had been opened. - (sold separately).
Features & Benefits
Space saving - sliding doors help create up to 8% more living more space within a property
Easy access
Quiet operation
Easy installation
Economical
Prefabricated cassette design allows for very quick installation on site.
Dimensions - Frame Sizes & Door Kit Sizes Available
Item Code
Glass Door Size (Dw x Dh)
Max Passage Size (L x H)
Overall Frame Size (Li x Hi)
Finished Wall Thickness (Pf)
48179.1
686mm x 1981mm - (2ft. 3in. x 6ft. 6in.)
656mm x 1970mm
1466mm x 2080mm
125mm
48179.2
762mm x 1981mm - (2ft. 6in. x 6ft. 6in.)
732mm x 1970mm
1592mm x 2080mm
125mm
48179.3
838mm x 1981mm - (2ft. 9in. x 6ft. 6in.)
808mm x 1970mm
1818mm x 2080mm
125mm
48179.4
914mm x 1981mm - (3ft. 0in. x 6ft. 6in.)
884mm x 1970mm
1894mm x 2080mm
125mm
48179.5
626mm x 2040mm - (Metric Door)
600mm x 2030mm
1310mm x 2140mm
125mm
48179.6
726mm x 2040mm - (Metric Door)
700mm x 2030mm
1510mm x 2140mm
125mm
48179.7
826mm x 2040mm - (Metric Door)
800mm x 2030mm
1710mm x 2140mm
125mm
48179.8
926mm x 2040mm - (Metric Door)
900mm x 2030mm
1910mm x 2140mm
125mm
Please note plasterboard is not provided with this kit and must be bought separately.
Items Included Within The Scrigno Pocket Sliding Door Kit
Metal cassette to create the "pocket"
Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
Roller bearing door hanger kit
Timber lining kit - (door jamb kit) including brush seals and rubber bumpers.
