Single Door Lobby / Corridor With Electromagnetic Hold Open Door Closer - Ironmongery Kit - Suitable For FD30 & FD60 Fire Doors - Satin Stainless Steel Ironmongery

Our lobby / corridor kit with electromagnetic hold open door closer is ideal to specify or purchase for single doors in blocks of flats, offices, schools, hotels and hospitals, that require doors to be held open.

This non locking kit is supplied with a pull handle and push plate to open the door with and an electromagnetic hold open door closer.

Door closer supplied is hardwired into the fire alarm system and allows a fire door to be held open legally. In the event of a fire, the power is cut to the closer allowing the fire door to close.

High performance ironmongery including grade 14, concealed nylon bearing fire rated hinges (maintenance free with no grease) and a high quality EN1154 2-5 power overhead door closer.

Products tested for use on 30 minute FD30 and 60 minute FD60 timber fire rated doors and frames.

• Our FD30 kit is supplied with 1mm thick intumescent hinge pad liners
• Our FD60 kit is supplied with 2mm thick intumescent hinge pad liners.

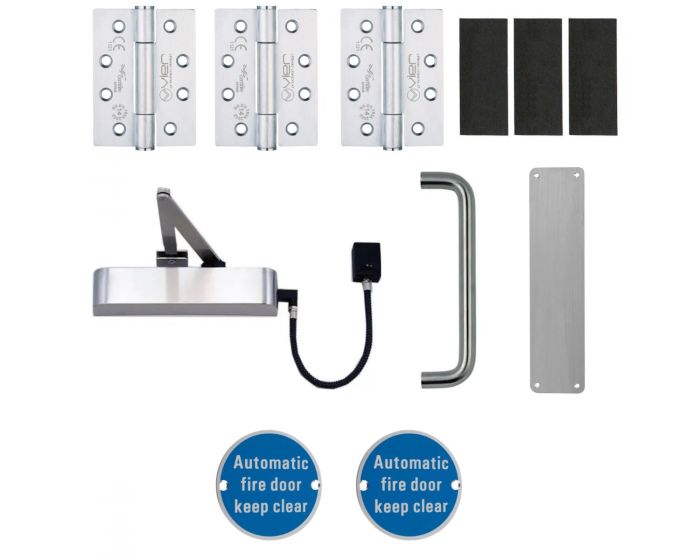

Items supplied in our FD30 fire door kit:

• 3 x (1.5 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel
• 6 x 40897.1 - Intumescent Hinge Pad Liners - 100mm x 30mm x 1mm - For Use On FD30 Fire Rated Doors - Monoammonium Phosphate
• 1 x 40272.2 - Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE Marked / UKCA Marked - Certifire Approved - Matching Cover & Arms - Satin Stainless Steel
• 1 x 31212.3 - D Shaped Pull Handle - Bolt Through Fixing - Satin Stainless Steel - 300mm Centres x 19mm Diameter - Suitable For Use With FD30 / FD60 Fire Doors
• 1 x 20580.2 - Radius Corner Finger Plate - Satin Stainless Steel - 350mm x 75mm - Suitable For Use With FD30 / FD60 Fire Doors
• 2 x 43466.1 - Automatic Fire Door Keep Clear - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background

Items supplied in our FD60 fire door kit:

• 3 x (1.5 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel
• 6 x 40897.2 - Intumescent Hinge Pad Liners - 100mm x 30mm x 2mm - For Use On FD60 Fire Rated Doors - Monoammonium Phosphate
• 1 x 40272.2 - Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE Marked / UKCA Marked - Certifire Approved - Matching Cover & Arms - Satin Stainless Steel
• 1 x 31212.3 - D Shaped Pull Handle - Bolt Through Fixing - Satin Stainless Steel - 300mm Centres x 19mm Diameter - Suitable For Use With FD30 / FD60 Fire Doors
• 1 x 20580.2 - Radius Corner Finger Plate - Satin Stainless Steel - 350mm x 75mm - Suitable For Use With FD30 / FD60 Fire Doors
• 2 x 43466.1 - Automatic Fire Door Keep Clear - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background

Please note although the above items have been fire tested and where required CE/ UKCA Marked, it's important to check the limitations or requirements of the fire test evidence for the fire door you are planning to install. Please call or email for further information.

Fire test certificates can be viewed and downloaded in the "Product Attachments Tab"

Items not included within this kit but may be required:

• Floor mounted door stop.
• Wall mounted door stop.
• Finger guards (commonly used in schools, hotels and hospitals).
