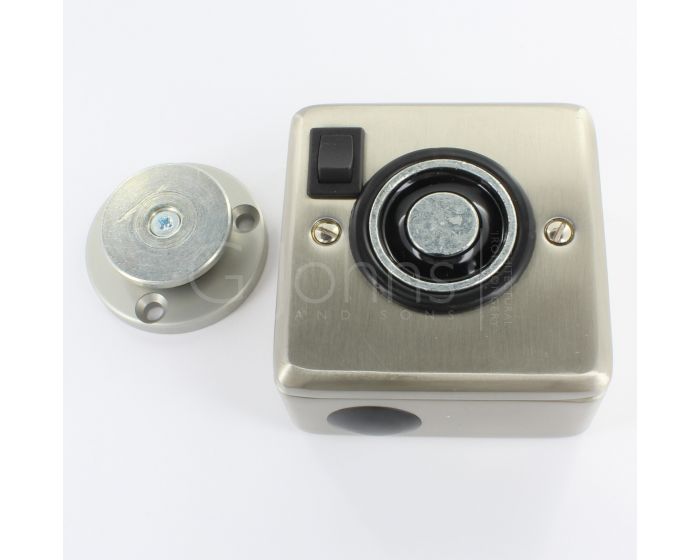

Surface Mounted Electro-Magnetic Fire Door Holder - 24v DC - With Manual On / Off Switch - Supplied With Armature Plate - Satin Nickel

Catalogue Number:
43497
Full Description
Product Name Price Qty
43497.1 - Surface Mounted Electro-Magnetic Fire Door Holder - 24v DC - With Manual On / Off Switch - Supplied With Armature Plate - Satin Nickel
£120.00 £100.00

Per Each
Enquire Now

Satin nickel finish electro-magnetic door holder.

The use of the Electro-magnetic door holder is the only safe and legally compliant way (with respect to ADM and BS 8300) to hold fire doors open within a building.

The Wall Magnet is also linked directly to the buildings Fire Detection system so that in the event of a fire, all doors are automatically released from the hold open position and shut to prevent the spread of fire and smoke throughout the building.

Specification: Electro-Magnetic Door Holder; Incorporating a manual On / Off switch; Designed to be surface mounted to a wall; Can be fitted direct to walls or floor mounted

Standard Voltage

24 Volt DC

Resistance

330 0hms

Power

1.75 Watts

Power Range Suitability

3-7 in accordance with BS EN 1154





Width

Height

Depth

Box Dimensions

86 mm

86 mm

52mm

Armature Dimensions

57 mm

57 mm

19 mm



Material: Manufactured from British Extruded Aluminium and British Steel

Fire Tested: 120 Minutes

Standards

BSEN 1155 (Electrical)

BSEN 1154 (Mechanical)

BSEN 1634 (Fire Test)

BS8300 (Ease of Access)

Finish - Satin nickel casing

Opotional Floor Mounted Bracket - 43494.1 - satin nickel finish floor mounting bracket, ideal for use with a floor mounted door closer,

More Information
Item 43497
Item Code 43497
Finish Satin Nickel Casing With Zinc Plated Armature Plate
Dimensions 86mm x 86mm x 52mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
