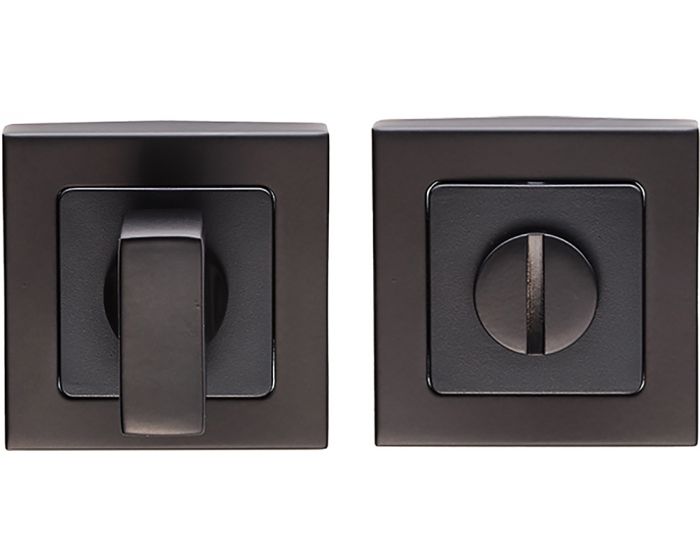

Thumb Turn & Release On Concealed Fix Square Rose - Matt Black

Catalogue Number:
49121
Full Description
Product Name Price Qty
49121.1 - Thumb Turn & Release On Concealed Fix Square Rose - Matt Black - Set
£20.83 £17.36

Per Set
Enquire Now
  • Bathroom turn & release set with concealed fix square rose
  • A turn and release consists of two parts

    1 - a snib turn which is fitted on the inside of the bathroom and is used to lock the bathroom or toilet by twisting the snib a quarter turn to the left or right

    2 - a release which is fitted on the outside of the bathroom. If some gets locked in the bathroom or toilet the snib can be released in an emergency by twisting a coin or screwdriver in the slotted part of the rose a quarter turn

  • This turn and release set uses a 5mm x 5mm spindle (the metal shaft that goes through the door) this suits standard UK bath locks
  • A turn and release is only the cosmetic part that you see on the outside of the door and requires a mechanism to work in conjunction with it, such as a bathroom deadbolt

Finish

  • Matt black

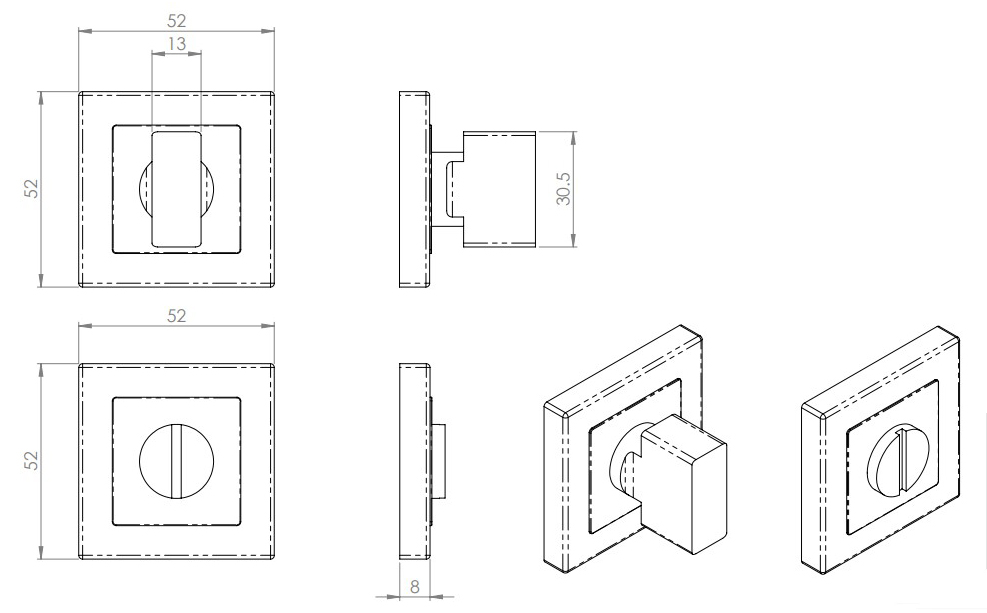

Dimensions

Thumb-Turn-&-Release-On-Concealed-Fix-Square-Rose-Diagram

  • Rose Size - 52mm x 52mm
  • Rose Projection - 8mm

Important Info Before You Buy

  • Can also be used as a privacy lock for bedrooms
  • Supplied with all fixings
  • PLEASE NOTE - THIS ITEM MUST BE USED IN CONJUNCTION WITH A DEAD BOLT OR A BATHROOM MORTICE LOCK
More Information
Item 49121
Item Code 49121
Finish Matt Black
Dimensions 52mm x 52mm
Sold Per Set
Availability To Order 2 - 3 Working Days
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
