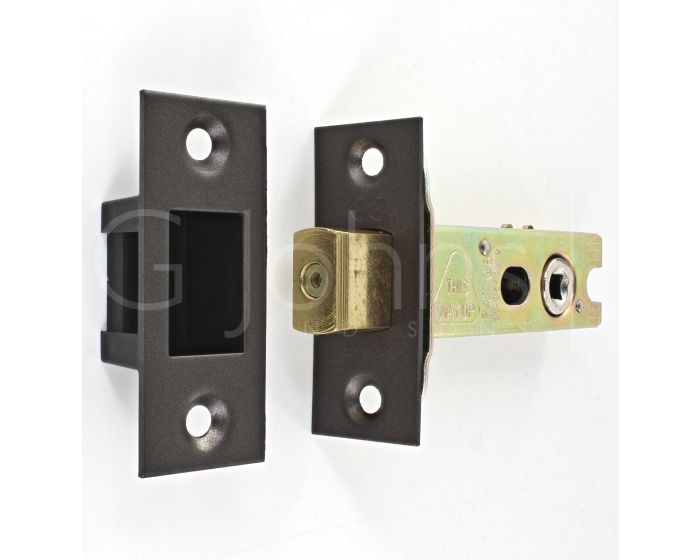

Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt Bronze (Powder Coated)

Catalogue Number:
44811
Full Description Related Products
Product Name Price Qty
44811.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth - (44mm Backset) - Matt Bronze (Powder Coated)
£20.06 £16.72

Per Each
44811.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth - (57mm Backset) - Matt Bronze (Powder Coated)
£20.06 £16.72

Per Each
44811.3 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 102mm Case Depth (82mm Backset) - Matt Bronze (Powder Coated)
£22.75 £18.96

Per Each
44811.4 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 125mm Case Depth (108mm Backset) - Matt Bronze (Powder Coated)
£24.29 £20.24

Per Each
Enquire Now
  • Tubular style mortice deadbolt.
  • 5mm follower designed for used with UK style bathroom turn & release sets.
  • Twisting the follower a quarter is enough to throw and withdraw the deadbolt.
  • 38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.
  • Architectural quality.
  • Designed for use on bathroom doors, WC's and toilet doors

Operation

  • Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features

  • Solid brass deadbolt with anti-saw rollers.
  • Bolt through facility for bolt together fixing furniture with 38mm fixing centres.
  • 5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).

Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.

Finish

  • Matt bronze

Dimensions

Diagram and dimensions heavy duty latch

Available in four different sizes

  • Available in four sizes
  • 64mm case depth (44mm backset) NOTE THIS LATCH DOES NOT HAVE BOLT HOLES
  • 76mm case depth (57mm backset)
  • 102mm case depth (83mm backset)
  • 127mm case depth (108mm backset)


44811.1
44811.2
44811.3
44811.4
Dimension On Diagram
Overall Case Depth
64mm
76mm
102mm
127mm
A
Backset (Distance To centre Of Spindle Hole)
44mm
57mm
83mm
108mm
B
Case Height
23mm
23mm
23mm
23mm
C
Forend - Height (H) x Width (W)
60mm x 25mm
60mm x 25mm
60mm x 25mm
60mm x 25mm
D
Strike Plate - Height (H) x Width (W)
65mm x 25mm
65mm x 25mm
65mm x 25mm
65mm x 25mm
E

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Unit Of Sale

  • Each - (1 x latch case supplied with forend and strike plate and black back box liner).
More Information
Item 44811
Item Code 44811
Finish Matt Bronze (Powder Coated)
Dimensions 64mm, 76mm, 102mm or 125mm Case Depth
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock product - please allow 1-3 days for delivery
Stock product - please allow 1-3 days for delivery
Download PDF Data Sheet
