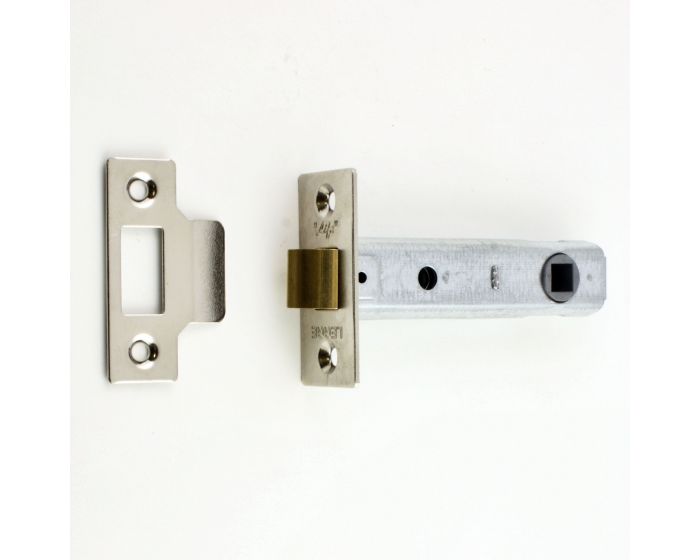

Tubular Mortice Latch - 96mm Deep Latch With 76mm Backset For Use With Door Knobs - Nickel Plated

Catalogue Number:
15106
Full Description Related Products
Product Name Price Qty
15106.1 - Legge Tubular Mortice Latch - 96mm Case Depth (76mm Backset) - Nickel Plated
£11.77 £9.81

Per Each
  • Long tubular mortice latch.
  • 96mm deep latch with 76mm backset to the centre of the spindle.
  • Ideal for use with mortice knobs as the large backset helps to throw your hands and knuckles away from the edge of the door frame.
  • Nickel plated silver finish ideal for use with satin or polished chrome door knobs.
  • Basic latch ideal for use with door handles fitted in residential properties.
  • Can be used with a rebate kit for double rebated doors.
  • This latch has a medium weight spring making it ideal for use with sprung or un-sprung door knobs.


Operation

  • Latch is withdrawn via a door handle from either side of the door (handles sold separately).

Features

  • Medium weight springing.
  • Solid brass latch.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Latch can be reversed on site by turning the latch upside down.
  • Reversible frame mounted strike plate.
  • Suitable for use on internal doors in residential buildings.

Finish

  • Nickel plated.



Alternative Finishes Available

  • Polished brass.

Dimensions

Diagram and dimensions of legge 96mm deep latch with 76mm backset

15106.1
Dimension On Diagram
Overall Case Depth
96mm
A
Backset (Distance To centre Of Spindle Hole)
76mm
B
Case Height
22mm
C
Forend - Height (H) x Width (W)
58mm x 25mm
D
Strike Plate - Height (H) x Width (W)
58mm x 19mm
E

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • TL8ANP - 13mm nickel plated rebate kit for use with the 96mm deep tubular latch.


Unit Of Sale

  • Each - (1 x latch case supplied with forend and strike plate).
More Information
Item 15106
Item Code 15106
Finish Nickel Plated
Dimensions 96mm Deep Latch With 76mm Backset
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
