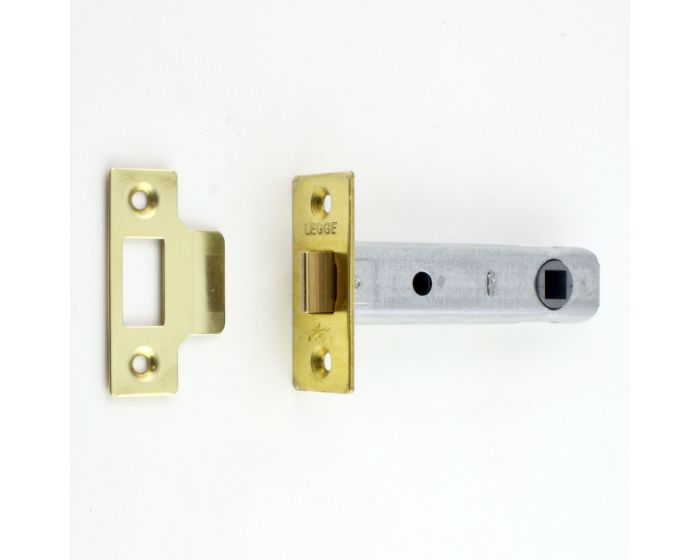

Tubular Mortice Latch - 96mm Deep Latch With 76mm Backset For Use With Door Knobs - Polished Brass

Catalogue Number:
15107
Full Description Related Products
Product Name Price Qty
15107.1 - Legge Tubular Mortice Latch - 96mm Case Depth (76mm Backset) - Polished Brass
£15.00 £12.50

Per Each
  • Long tubular mortice latch.
  • 96mm deep latch with 76mm backset to the centre of the spindle.
  • Ideal for use with mortice knobs as the large backset helps to throw your hands and knuckles away from the edge of the door frame.
  • Polished brass strike plate and forend, ideal for use with polished brass door knobs.
  • Basic latch ideal for use with door handles fitted in residential properties.
  • Can be used with a rebate kit for double rebated doors.
  • This latch has a medium weight spring making it ideal for use with sprung or un-sprung door knobs.


Operation

  • Latch is withdrawn via a door handle from either side of the door (handles sold separately).

Features

  • Medium weight springing.
  • Solid brass latch.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Latch can be reversed on site by turning the latch upside down.
  • Reversible frame mounted strike plate.
  • Suitable for use on internal doors in residential buildings.

Finish

  • Polished brass.



Alternative Finishes Available

  • Nickel plated.

Dimensions

Diagram and dimensions of legge 96mm deep latch with 76mm backset

15107.1
Dimension On Diagram
Overall Case Depth
96mm
A
Backset (Distance To centre Of Spindle Hole)
76mm
B
Case Height
22mm
C
Forend - Height (H) x Width (W)
58mm x 25mm
D
Strike Plate - Height (H) x Width (W)
58mm x 19mm
E

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • TL8A - 13mm brass plated rebate kit for use with the 96mm deep tubular latch.


Unit Of Sale

  • Each - (1 x latch case supplied with forend and strike plate).
More Information
Item 15107
Item Code 15107
Finish Polished Brass
Dimensions 96mm Case Depth - (76mm Backset)
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
