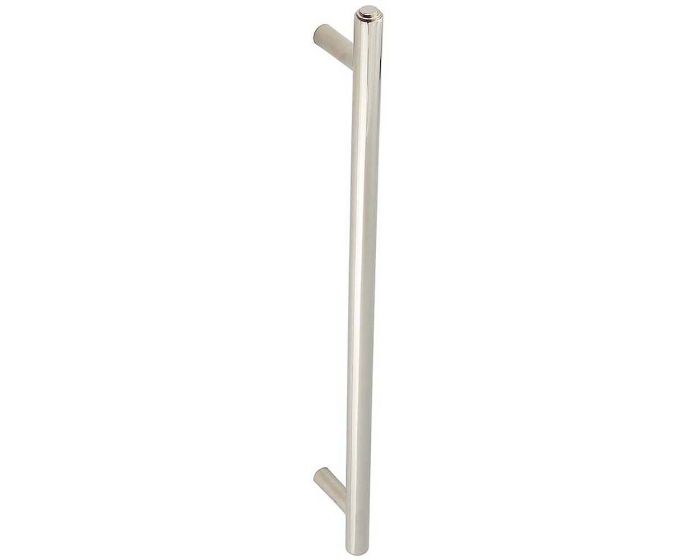

Tubular T Bar Face Fixed Pull Handle With Stepped Ends - 513mm Length (425mm Centres) - Polished Nickel - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
49542
Full Description Related Products
Product Name Price Qty
49542.1 - Tubular T Bar Face Fixed Pull Handle With Stepped Ends - Tested For Use With FD30 / FD60 Fire Doors - 513mm Length (425mm Centres) - Polished Nickel - Each
£91.51 £76.26

Per Each
Enquire Now
  • Tubular T Bar Face Fixed Pull Handle With Stepped Ends
  • High architectural quality Polished Nickel pull handle
  • Made from solid brass ideal for internal or external entrance doors
  • Suitable for solid core wooden doors only
  • Face fixing door design see below diagram
Face-Fix-Pull-Handle-Diagram

Above diagram shows how a face fix pull handle is fitted to a wooden door

Base Material

  • Solid Brass

Finish

  • Polished Nickel

Dimensions

Rectangular-Pull-Handle-With-Rounded-Grip-Diagram

  • Overall Length: 439mm
  • Bolt Centres: 425mm
  • Projection: 65mm

Fire Rating

  • These handles have been tested to be used on FD30 / FD60 fire doors

Important Info Before You Buy

  • Suitable for solid core wooden doors
  • This pull handle is sold individually - each
More Information
Item 49542
Item Code 49542
Finish Polished Nickel
Dimensions 513mm Length (425mm Centres)
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
