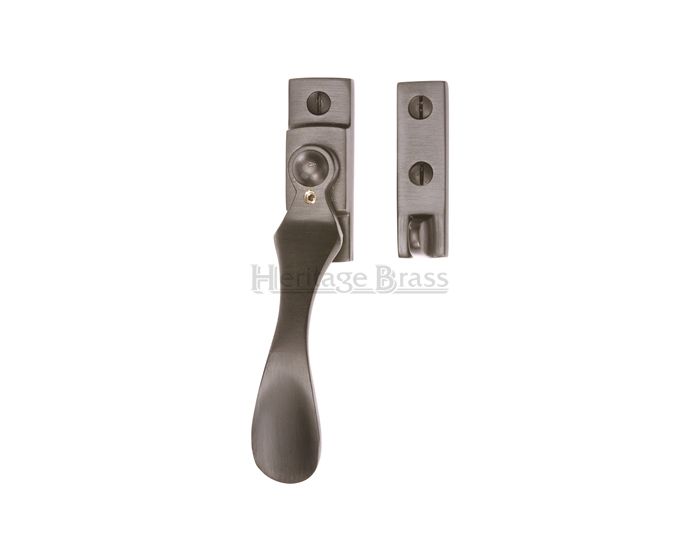

Wedge Pattern - Locking Casement Window Fastener - Matt Bronze (Lacquered)

Catalogue Number:
48123
Full Description
Product Name Price Qty
48123.1 - Spoon End Design - Locking Wedge Pattern Window Fastener - Matt Bronze (Lacquered) - Each
£29.21 £24.34

Per Each
Enquire Now
  • Wedge pattern locking window fastener
  • Key lockable via an alun key and grub screw - low level security
  • This fastener can be locked by screwing the grub screw into the fastener with the alun key provided. This stops the fastener from moving hence stopping the window from being opened
  • Wedge pattern fastener - when in the closed position the window handle sits over a "wedge plate" mounted to the window frame, this pulls the window in with a nice tight seal and keeps it held closed
  • This fastener is reversible so can be used on windows hung on the left or right

Finish

  • Matt Bronze

Dimensions



Diagram showing dimensions of the V1005 wedge pattern locking casement window fastener

  • Back Plate - Height - 58mm x Width - 20mm
  • Handle Length - 108mm
  • Wedge Back Plate - Height - 51mm x Width - 16mm
  • Step Distance - 6mm
  • Wedge Tag Length - 14mm

Important Info Before You Buy

  • Suitable for wooden windows
  • For use on standard outward opening windows only
  • The wedge plate provided is fitted to the window frame and is used in place of a traditional mortice plate
  • Comes supplied with fixing screws, wedge plate, grub screw and alun key
  • Matching window stay to open and close the window also available
More Information
Item 48123
Item Code 48123
Finish Matt Bronze (Lacquered)
Dimensions 108mm Handle Length
Fire Rated Non Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
