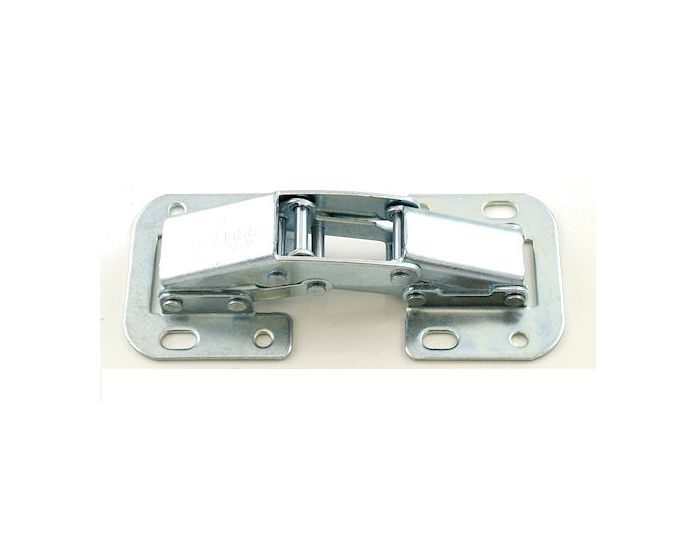

Easy Mount - Concealed Cabinet Hinge

Catalogue Number:
20947
Full Description
Product Name Price Qty
20947.1 - White 1mm Spacer Plate - White - Each
£0.52 £0.43

Per Each
20947.2 - Easy Mount - Concealed Cabinet Hinge - Zinc Plated - Each
£1.39 £1.16

Per Each
Enquire Now
  • Concealed style easy fix cabinet hinge
  • Kitchen cabinet, cupboard and wardrobe, style hinge
  • Easy mount, quick fix no need to countersink or mortice into door or carcass
  • UN-SPRUNG
  • 90 degree opening angle
  • Suitable for overlay, half overlay or inset doors

Dimensions

  • Back Plates - 42mm x 38mm
  • Overall Open Width - 97mm

Important info before you buy

  • Concealed style hinge - you can't see the hinge when the door is closed
  • Commonly used on kitchen cabinets and Wardrobe doors
  • This hinge can be fitted in 3 different ways to suit various door applications:

Overlay Doors

Easy Fit Hinges Fitted To Overlay Doors

Half Overlay Doors

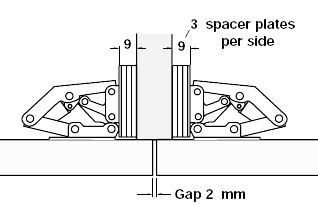

Diagram Showing Easy Fit Hinges Fitted To Half Overlay Doors

Inset Doors

Inset Doors Fitted With Easy Mount Hinges

  • Spacer plates for half overlay doors sold separately.
  • These hinges are sold individually (each - 1 hinge)
More Information
Item 20947
Item Code 20947
Finish Zinc Plated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
