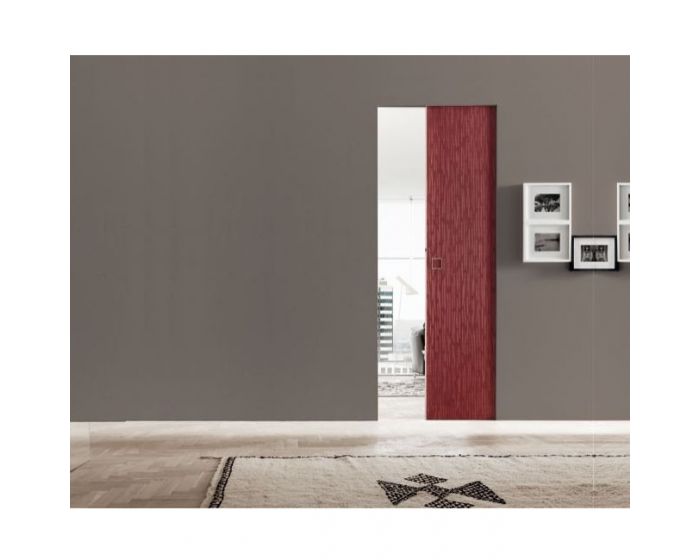

The Eclisse Syntesis sliding door gear system is designed for use with sliding internal pocket hideaway doors that have no architraves or door jambs.
A single sliding pocket door system for a c lean, contemporary, minimalist finish this sliding door kit is an ingenious system that allows you to eliminate the use of architraves. and jambs and just see the clean lines of the wall and door.
The special corner profiles supplied with this system mean the edges are plastered in with the same plaster as the walls, the result being a consistent paint finish which will not age at different rates
The Syntesis range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger profiles, reinforced joints and top quality materials. This is a product that will last!
Suitable for use with doors up to 80kg
Allows an interior door to slide into a "pocket" within the wall cavity.
Each set includes all the main components needed to install a long lasting, smooth running sliding door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-44mm thick to be installed with a finished wall of 100 mm.
Suitable for use with timber doors. (Door not included).
Features & Benefits
Space saving - sliding doors help create up to 8% more living more space within a property
No architraves of doors jambs required
Easy access
Quiet operation
Easy installation
Economical
Prefabricated components
Accessories
43129.1 - BIAS anti-slam soft close mechanism.
Dimensions - Frame Sizes & Door Kit Sizes Available
Item Code
Door Size (DW x DH)
Passage Size (A x PH)
Overall Frame Size (W x H)
Finished Wall Thickness
40156.1
610mm x 1981mm - (2ft. 0in. x 6ft. 6in.)
584mm x 1989mm
1384mm x 2049mm
100mm
40156.2
686mm x 1981mm - (2ft. 3in. x 6ft. 6in.)
660mm x 1989mm
1560mm x 2049mm
100mm
40156.3
762mm x 1981mm - (2ft. 6in. x 6ft. 6in.)
736mm x 1989mm
1736mm x 2049mm
100mm
40156.4
838mm x 1981mm - (2ft. 9in. x 6ft. 6in.)
812mm x 1989mm
1812mm x 2049mm
100mm
40156.5
914mm x 1981mm - (3ft. 0in. x 6ft. 6in.)
888mm x 1989mm
1988mm x 2049mm
100mm
40156.6
626mm x 2040mm
600mm x 2048mm
1400mm x 2108mm
100mm
40156.7
726mm x 2040mm
700mm x 2048mm
1600mm x 2108mm
100mm
40156.8
826mm x 2040mm
800mm x 2048mm
1800mm x 2108mm
100mm
40156.9
926mm x 2040mm
900mm x 2048mm
2000mm x 2108mm
100mm
40156.10
1026mm x 2040mm
1000mm x 2048mm
2200mm x 2108mm
100mm
Please note plasterboard is not provided with this kit and must be bought separately.
Please note the Syntesis kit must be routered 200mm x 20mm into two positions in the top of your door, please make sure the top rail of you chosen door is deep enough to accommodate this routing.
Items Included Within The Eclisse Syntesis Single Pocket Sliding Door Kit
Metal frame work to create the "pocket"
Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
Roller bearing door hanger kit
Video Showing How To Construct The Syntesis Architrave Free Single Door Pocket Sliding Door Kit
Video Showing How To Install The Door On The Syntesis Architrave Free Single Door Pocket Sliding Door Kit
