Face Plate Cover For Air Transfer Grilles - Silver

Catalogue Number:
31209
Full Description Related Products
Product Name Price Qty
31209.1 - Face Plate Cover - For ES400 Air Transfer Grille Vent - Satin Silver - 150mm x 150mm - Each
£10.61 £8.84

Per Each - (1 x Face Plate)
31209.4 - Face Plate Cover - For ES403 Air Transfer Grille Vent - Satin Silver - 112mm x 225mm - Each
£16.99 £14.16

Per Each - (1 x Face Plate)
31209.2 - Face Plate Cover - For ES401 Air Transfer Grille Vent - Satin Silver - 150mm x 300mm - Each
£16.99 £14.16

Per Each - (1 x Face Plate)
31209.5 - Face Plate Cover - For ES404 Air Transfer Grille Vent - Satin Silver - 225mm x 225mm - Each
£23.52 £19.60

Per Each - (1 x Face Plate)
31209.3 - Face Plate Cover - For ES402 Air Transfer Grille Vent - Satin Silver - 300mm x 300mm - Each
£23.52 £19.60

Per Each - (1 x Face Plate)
Enquire Now
  • Cover face plate for use with air transfer grilles - (product 31208).
  • Louvred design.
  • Horizontal louvres set on 8.5mm pitch with 30% downward deflection.
  • Sizes shown below are for the cut out required in the fire door, please allow extra for the flange around the plate.
  • Faceplates are constructed from 1mm thick Zintec mild steel.
  • Faceplates are supplied with fixing screws.
  • Sold individually - (please note in most situations two face plate covers per one grille are required).
  • This product is for the face plate only (the silver covers mounted to the face of the door).
  • The intumescent grilles the are fitted into the door and seal in the event of a fire are sold separatley please see related products or search for product 31208.


Finish:
  • Powder coated satin silver finish.



Dimensions:

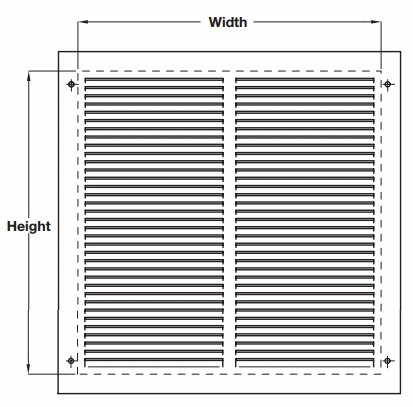

face-plate-cover-for-air-transfer-grilles-silver-finish-aperture

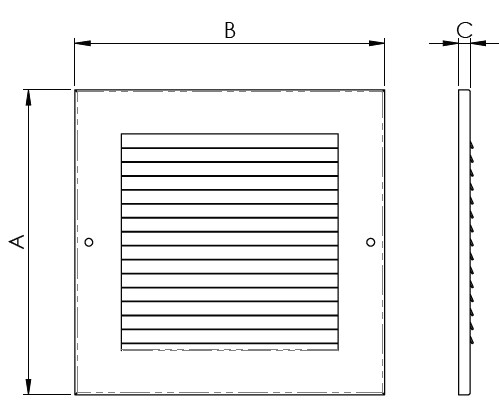

face-plate-cover-for-air-transfer-grilles-silver-finish



Item CodeFace Plate Aperture DimensionsFree Air FlowMatching Face Plate CodeOverall Height (A)Overall Width (B)Thickness (C)
31209.1 150mm x 150mm 150 sq cms 31208.5 197mm 200mm 7.5mm
31209.4 112mm x 225mm 159 sq cms 31208.3 167mm 270mm 7.5mm
31209.2 150mm x 300mm 295 sq cms 31208.1 197mm 347mm 7.5mm
31209.5 225mm x 225mm 320 sq cms 31208.4 270mm 270mm 7.5mm
31209.3 300mm x 300mm 593 sq cms 31208.2 340mm 347mm 7.5mm


Sold Per:

  • Sold individually - (please note in most situations two face plate covers per one grille are required).
More Information
Item 31209
Item Code 31209
Finish Silver
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each - (1 Plate)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
