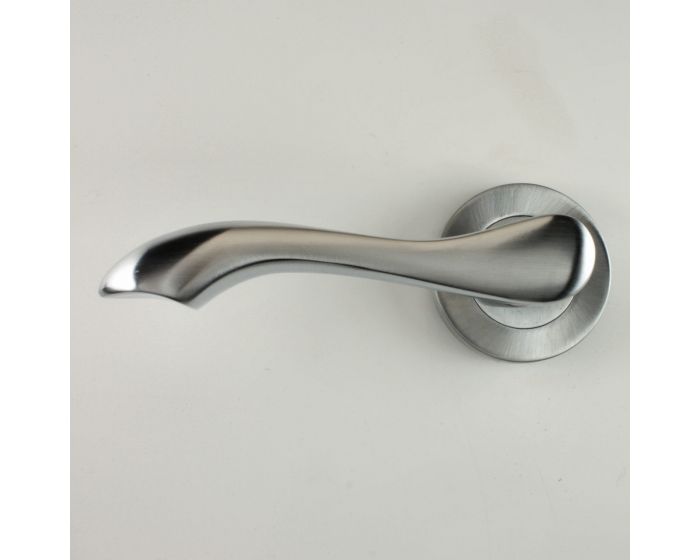

Gamma Door Handles - Satin Chrome - Suitable For Use With FD30 / FD60 Fire Doors
- The JV509SC Gamma lever handles from the Frelan Hardware - Jedo collection are a classic design door handle set with a chunky scrolled design lever.
- Satin (brushed) chrome finish.
- Ideal for residential use.
How To Order Lever Handles With A Rose
- For Non-Locking Doors - 1 x (Pair) Lever Handles Only
- For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons
- For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons
- For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release
- Standard escutcheon - (key hole cover to suit regular "chubb style locks")
- Euro profile escutcheon - (key hole cover to suit euro profile cylinders)
- Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)
- Made from a zinc alloy.
- Satin chrome finish - This item has been chrome plated and satinised to produce a matt brushed finish. Satin chrome is a grey colour with blue undertones and visible brush marks in the surface of the item.
Alternative Finishes Available
- Polished chrome
- Polished brass
- Both levers are sprung to ensure the lever always returns to its starting position.
- Rose Diameter - 50mm
- Rose Thickness - 10mm
- Lever Length - 120mm
- 8mm x 8mm square - UK Standard.
- Concealed bolt together fixings via male and female bolts.
- Grub screw fixing to spindle for extra strength once fitted to the door.
- Comes supplied with male and female bolt through fixings and 8mm spindle.
- Suitable for residential use.
- Suitable for internal or external use.
Unit Of Sale
- Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
- Escutcheons (key hole covers) are sold individually (each.)
- Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
|Dimensions||50mm Diameter Rose|
|Fire Rated||FD30 / FD60 - Fire Rated|
|Availability||Non stock product - please allow 3-7 days for delivery|
