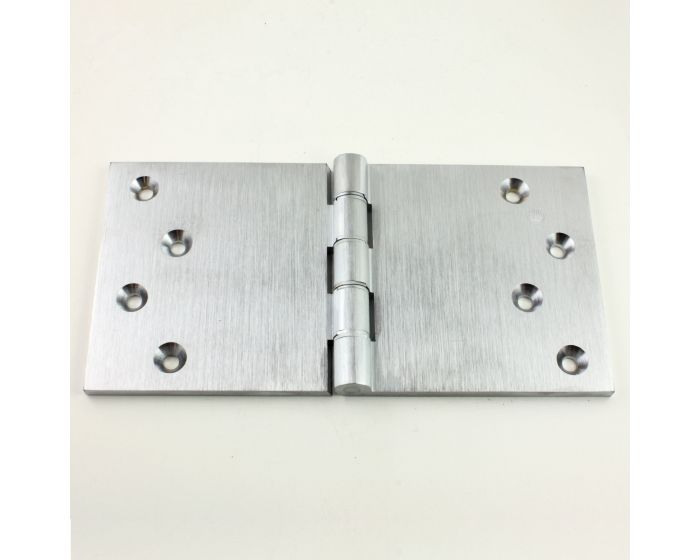

Broad Butt Projection Hinges - Satin Chrome - Available in Four Sizes

Catalogue Number:
15177
Full Description
Product Name Price Qty
15177.1 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 102mm - Pair
£37.66 £31.38

Per Pair - (2 Hinges)
15177.2 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 125mm - Pair
£46.87 £39.06

Per Pair - (2 Hinges)
15177.3 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 152mm - Pair
£66.38 £55.32

Per Pair - (2 Hinges)
15177.4 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 203mm - Pair
£147.65 £123.04

Per Pair - (2 Hinges)
Enquire Now
  • Suitable for wooden doors
  • Base material is brass that has been satin chrome plated
  • These hinges are suitable for heavy doors. The broad butts have large knuckle and phosphor bronze washers providing much greater strength and wear-ability compared to parliament hinges
  • Hinges are sold and priced in pairs and come supplied with screws
  • Broad butt projection hinges for double, patio and French doors
  • Hinges allow doors to fold back on its self 180 degrees
  • Suitable for heavy internal or external doors

Finish

  • Satin chrome

Dimensions

Diagram of a hinge

Available in 4 Sizes


15177.1 - (102mm x 102mm x 3mm)

15177.2- (102mm x 127mm x 3.5mm)

15177.3 - (102mm x 152mm x 3.5mm)

15177.4 - (102mm x 203mm x 4.5mm)


15177.1
15177.2
15177.3
15177.4
Dimension On Diagram
Height
102mm
102mm
102mm
102mm
A
Width
102mm
127mm
152mm
203mm
B
Leaf Width
45mm
57mm
69mm
95mm
C
Projection given
44mm
67mm
82mm
114mm
D
Thickness
3mm
3.5mm
3.5mm
4.5mm
N/A
Important Info Before You Buy
  • Broad butt projection hinges are used to help project or "throw" a door past an obstruction so it can fold back on it's self 180degrees
Diagram of why regular hinges can't be usedDiagram of how parliament hinges work
  • Suitable for wooden doors
  • Base material is brass that has been stain chrome plated
  • Hinges suitable for heavy doors. The broad butts have large knuckle and phosphor bronze washers providing much greater strength and wear-ability compared to parliament hinges
  • Hinges are sold and priced in pairs and come supplied with screws
More Information
Item 15177
Item Code 15177
Finish Satin Chrome
Sold Per Pair - (2 Hinges)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
