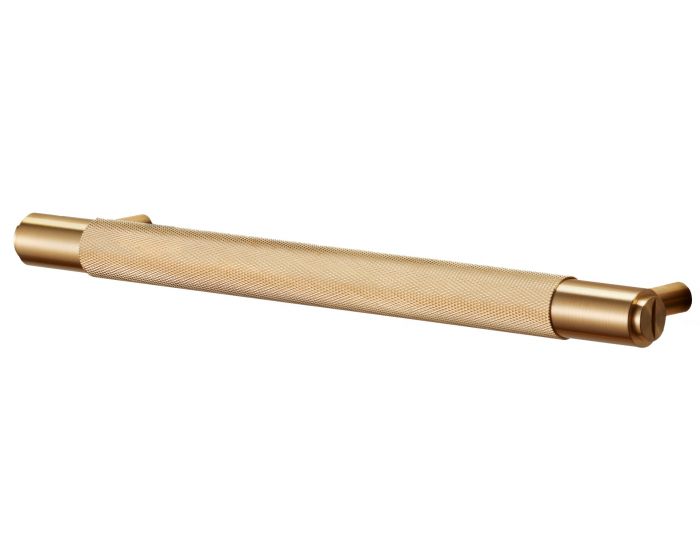

Buster & Punch Diamond Cut Knurled Pattern Pull Bar Handle - Available In Three Sizes - Satin Brass

Catalogue Number:
48280
Full Description
Product Name Price Qty
48280.1 - Diamond Cut Knurled Pattern Pull Bar Handle - 160mm Length (125mm Fixing Centres) x 18mm Diameter Grip - Satin Brass - Each
£53.00 £44.17

Per Each
48280.2 - Diamond Cut Knurled Pattern Pull Bar Handle - 260mm Length (225mm Fixing Centres) x 18mm Diameter Grip - Satin Brass - Each
£64.00 £53.33

Per Each
48280.3 - Diamond Cut Knurled Pattern Pull Bar Handle - 360mm Length (325mm Fixing Centres) x 18mm Diameter Grip - Satin Brass - Each
£74.00 £61.67

Per Each
48280.4 - Diamond Cut Knurled Pattern Pull Bar Handle - 770mm Length (725mm Fixing Centres) x 18mm Diameter Grip - Satin Brass - Each
£108.00 £90.00

Per Each
  • Buster & Punch knurled pattern cabinet pull bar handle, Satin Brass.
  • Chunky industrial design with diamond cut knurled pattern grip.
  • Ideal for use on, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

  • Available in four sizes:

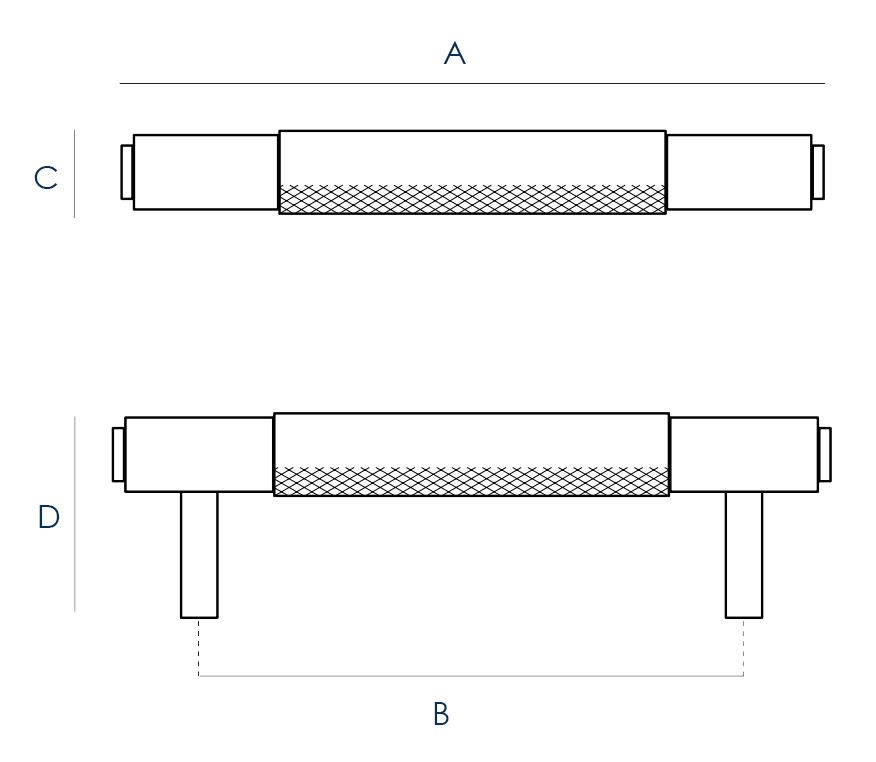

Buster & Punch Knurled Pattern Cabinet Pull Handle - Dimensions Diagram

Item Code Overall Length (A) Fixing Centres (B) Bar Diameter (C) Projection (D)
48280.1 160mm 125mm 18mm 47mm
48280.2 260mm 225mm 18mm 47mm
48280.3 360mm 325mm 18mm 47mm
48280.4 770mm 725mm 18mm 50mm


Finish Details

  • Satin Brass

Fixings

  • This cupboard handle is fitted via M5 bolts from the rear of the door / drawer - see below diagram.
  • Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.
  • Supplied with a 25mm long bolt - suitable for use on 18mm thick doors.
  • For doors thicker then 18mm, longer M5 fixing bolts are required, please contact us with your requirements.

Unit Of Sale

  • Each - (1 x cupboard handle).
More Information
Item 48280
Item Code 48280
Finish Satin Brass
Dimensions 160mm / 260mm / 360mm / 770mm Lengths x 18mm Diameter
Sold Per Each
Availability Non stock product - please allow 5-7 days for delivery
Non stock product - please allow 5-7 days for delivery
Download PDF Data Sheet
