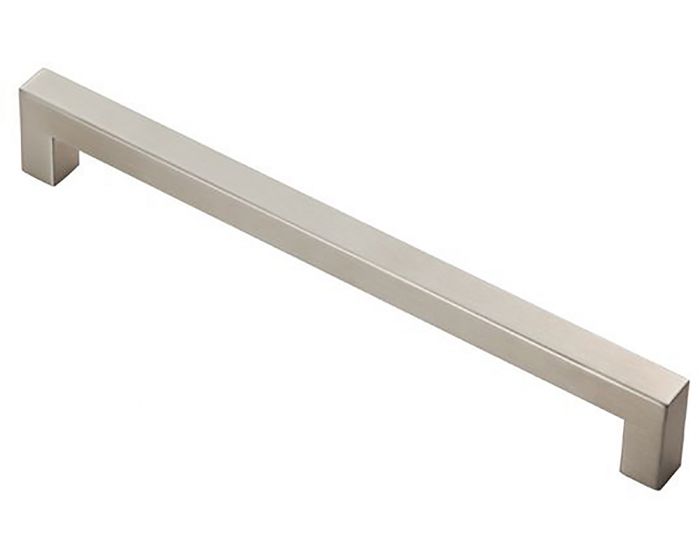

Linear Rectangular Bolt Through Fixing Pull Handle - Available In Four Sizes - Satin Stainless Steel

Catalogue Number:
49105
Full Description
Product Name Price Qty
49105.1 - Linear Rectangula Bolt Through Fixing Pull Handle - 110mm Overall (96mm Fixing Centres) - Satin Stainless Steel - Each
£4.48 £3.73

Per Each
49105.2 - Linear Rectangula Bolt Through Fixing Pull Handle - 142mm Overall (128mm Fixing Centres) - Satin Stainless Steel - Each
£5.11 £4.26

Per Each
49105.3 - Linear Rectangula Bolt Through Fixing Pull Handle - 174mm Overall (160mm Fixing Centres) - Satin Stainless Steel - Each
£5.63 £4.69

Per Each
49105.4 - Linear Rectangula Bolt Through Fixing Pull Handle - 238mm Overall (224mm Fixing Centres) - Satin Stainless Steel - Each
£6.90 £5.75

Per Each
Enquire Now
  • Architectural quality pull handle
  • Mitred design handle
  • Works perfectly with various interior design styles including industrial, modern, transitional, and contemporary
  • Suitable for domestic and commercial use
  • Bolt through the door design see below diagram
Diagram showing how a bolt through pull handle fits

Above diagram shows how a bolt through pull handle is fitted to a wooden door



Finish

  • Satin Stainless Steel

Dimensions

  • Available In Four Sizes

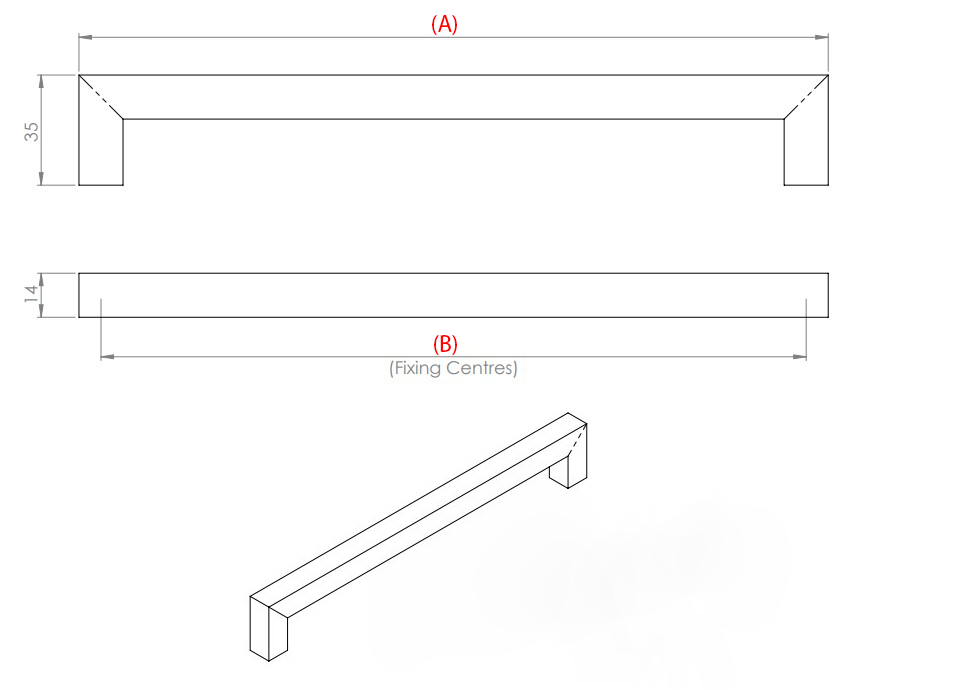

Linear-Rectangular-Bolt-Through-Fixing-Pull-Handle-Diagram

  49105.1 49105.2 49105.3 49105.4
Height
35mm
35mm
35mm
35mm
Width
14mm
14mm
14mm
14mm
Overall Length (A)
110mm
142mm
174mm
238mm
Fixing Centres (B)
96mm
128mm
160mm
224mm

Important Info Before You Buy

  • Suitable for wooden doors
  • Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings
  • This pull handle is sold individually - each
More Information
Item 49105
Item Code 49105
Finish Satin Stainless Steel
Dimensions 110mm Overall (96mm Fixing Centres), 470mm Overall (450mm Fixing Centres), 174mm Overall (160mm Fixing Centres), 238mm Overall (224mm Fixing Centres)
Sold Per Each
Availability To Order 2 - 3 Working Days
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
