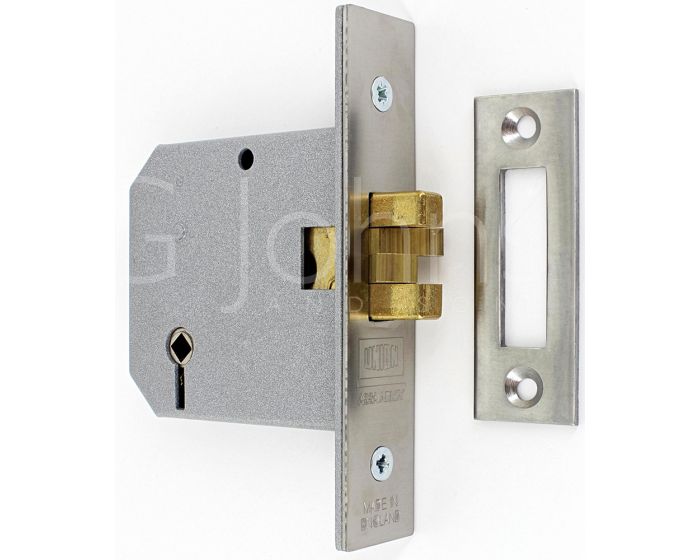

Sliding Door - Bathroom Claw Lock - Satin Chrome

Catalogue Number:
20659
Full Description
Product Name Price Qty
20659.1 - Union - Sliding Door - Bathroom Claw Lock - Satin Chrome - Each
£81.67 £68.06

Per Each
  • 3 inch (76mm) claw lock

Sliding door mortice bathroom lock

  • This lock is designed to be used on bathroom sliding doors that use theSnib turn & emergency releasesystem

Finish

  • Satin chrome

Dimensions

Diagram and dimensions of a union sliding door bathroom claw lock

Available in one size

  • 20659.1 - 76mm (3 inch)

20659.1
Dimension On Diagram
Overall Case Depth
76mm
A
Backset (Distance To centre Of Spindle Hole)
57mm
B
Case Height
70mm
C
Forend - Height (H) x Width (W)
103mm x 26mm
E
Receiver Plate - Height (H) x Width (W)
73mm x 26mm
F

Important Info Before You Buy

  • Suits 5mm spindles (standard UK turn and release spindle size)
  • This bathroom lock is supplied with strike plate (the receiver plate that goes on the door frame)
More Information
Item 20659
Item Code 20659
Finish Satin Chrome
Sold Per Each
Download PDF Data Sheet
