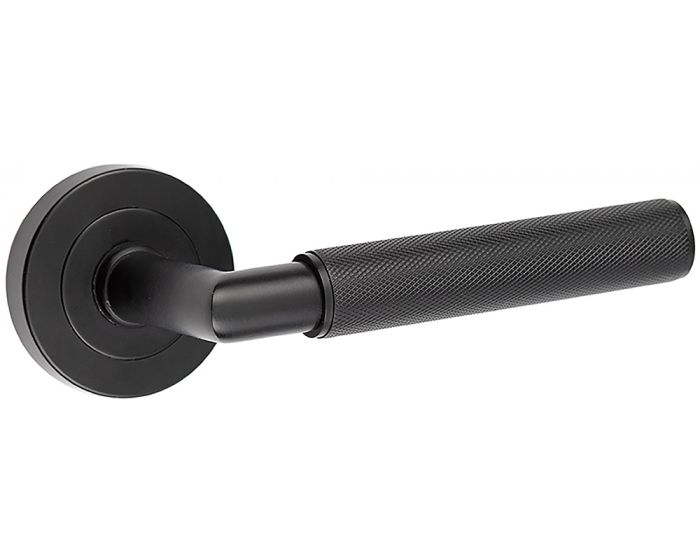

Mitred Knurled Design Lever Door Handles With Round Rose - Suitable For Use With FD30 Doors - Matt Black

• Mitred knurled design round rose lever handles

• Grade 304 material

• Suitable for commercial projects and public buildings

• Concealed bolt through fixings via screw on rose

• Suitable for use on FD30 fire rated doors only

• Matching accessories available including standard escutcheons (keyhole covers) and a bathroom turn & release set

How To Order Lever Handles With A Rose

• For Non-Locking Doors - 1 x (Pair) Lever Handles Only

• For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon - (key hole cover to suit regular "chubb style locks")

• Euro profile escutcheon - (key hole cover to suit euro profile cylinders)

• Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

• Disabled large turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

• Made from grade 304 stainless steel

• Matt Black

Operation

• Both levers are sprung to ensure the lever always returns to its starting position

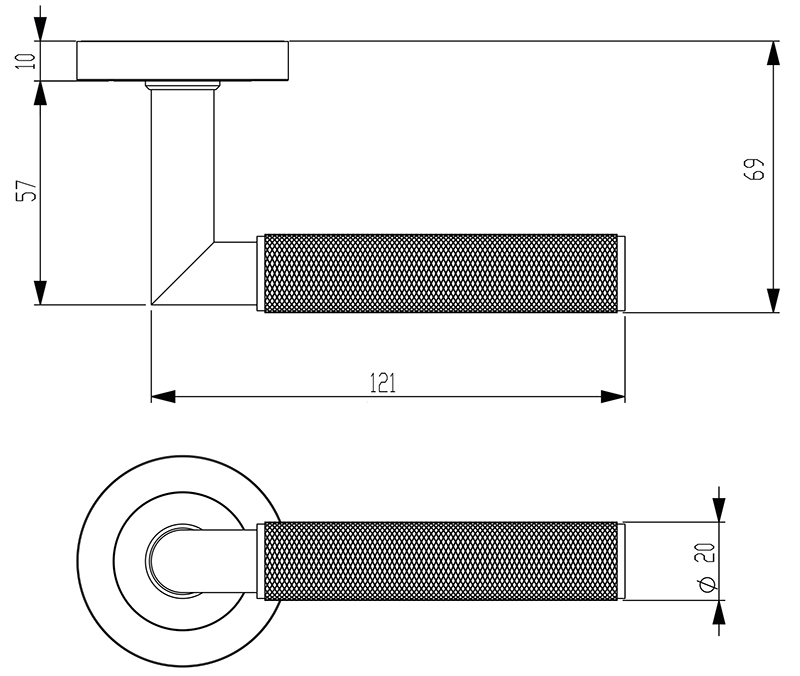

Dimensions

• Rose Diameter - 52mm

• Rose Thickness - 10mm

• Lever Diameter - 20mm

• Lever Length - 121mm

Spindle Size

• 8mm x 8mm square - UK Standard

Fixings

• Concealed bolt together fixings via male and female bolts

• Grub screw fixing to spindle for extra strength once fitted to the door

• Comes supplied with male and female bolt through fixings and 8mm spindle

Usage

• Suitable for heavy duty commercial use

• Suitable for internal or external use

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand)
