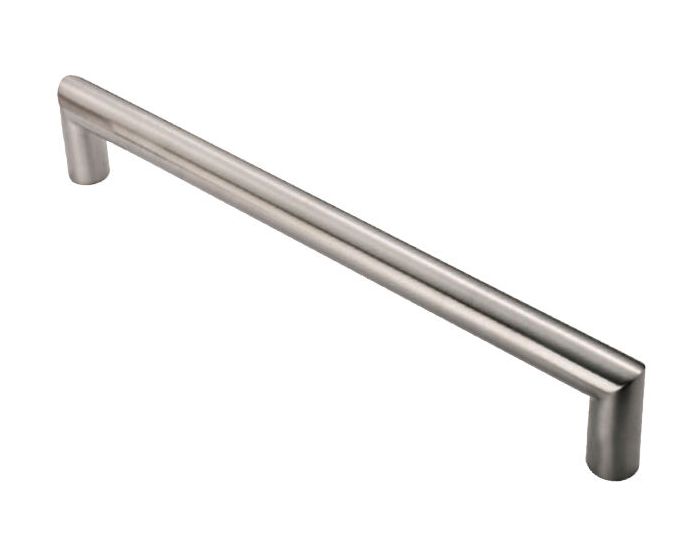

Mitred Shape Bolt Through Pull Handle - Grade 201 - Satin Stainless Steel
Catalogue Number:
48099
Related Products
-
![Cover Caps For Bolt Through Fixing Pull Handles - Supplied With M8 Bolts - Satin Stainless Steel]()
Cover Caps For Bolt Through Fixing Pull Handles - Supplied With M8 Bolts - Satin Stainless SteelStarting at £4.86 £4.05
-
![Face Fix Rose Kit For 19mm - 32mm Diameter Pull Handles - Satin Stainless Steel]()
Face Fix Rose Kit For 19mm - 32mm Diameter Pull Handles - Satin Stainless SteelStarting at £10.78 £8.98
-
![Modern Radius Corner Finger Plate - Satin Stainless Steel]()
Radius Corner Finger Plate - Satin Stainless Steel - Suitable For Use With FD30 / FD60 Fire DoorsStarting at £6.77 £5.64
-
![Back To Back Fixing Kit For Tubular Shape Pull Handles - Satin Stainless Steel]()
Back To Back Fixing Kit For Tubular Shape Pull Handles - Satin Stainless SteelStarting at £13.42 £11.18
- Brushed, satin stainless steel pull handle
- High architectural quality mitred style D shape pull handle
- High grade 201 stainless steel ideal for internal doors and external entrance doors
- Suitable for use on half hour FD30 and one hour FD60 fire doors tested and passed to BS EN 1634-1 2000
- Bolt through the door design see below diagram
Above diagram shows how a bolt through pull handle is fitted to a wooden door
Alternative Fixing Options:
- Bolt through fixing with cover caps (where no finger plate is wanted on the reverse side) - see related product - 43478.
- Back to back pair (kit for fitting pull handles to both sides of the door) - see related product - 43480.
- Face fixing with roses (kit for situations where the handle cannot be fixed from the rear) - see related product - 43484.
Finish
- Satin stainless steel
Dimensions
| Item | Bolt centers (A) | Diameter (B) | Projection (C) |
|---|---|---|---|
| 48099.1 | 150mm | 19mm | 64mm |
| 48099.2 | 225mm | 19mm | 64mm |
| 48099.3 | 300mm | 19mm | 64mm |
| 48099.4 | 425mm | 19mm | 64mm |
| 48099.5 | 600mm | 19mm | 64mm |
Important Info Before You Buy
- Suitable for internal use
- Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings
- Sold Individually
| Item | 48099 |
|---|---|
| Item Code | 48099 |
| Finish | Satin Stainless Steel |
| Fire Rated | FD30 / FD60 - Fire Rated |
| Sold Per | Each |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
