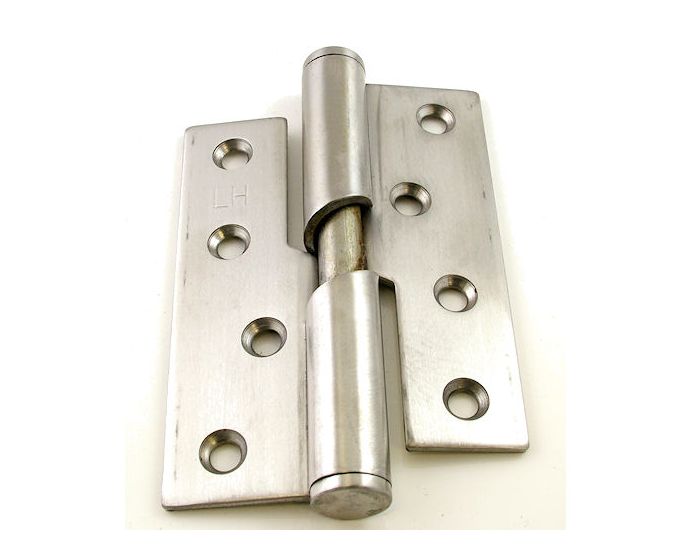

Rising Butt Hinges - 102mm x 76mm - Satin Stainless Steel

Catalogue Number:
20941
Full Description
Product Name Price Qty
20941.1 - Rising Butt Hinges - Satin Stainless Steel - 102mm x 76mm - LEFT HAND - Pair - (2 Hinges)
£12.98 £10.82

Per Pair - (2 Hinges)
20941.2 - Rising Butt Hinges - Satin Stainless Steel - 102mm x 76mm - RIGHT HAND - Pair - (2 Hinges)
£12.98 £10.82

Per Pair - (2 Hinges)
  • Architectural quality
  • Stainless steel
  • Suitable for internal or external doors that need to self close

Finish

  • Satin stainless steel

Dimensions

Diagram of a RIGHT hand rising butt hinge

ABOVE DIAGRAM SHOWS A RIGHT HAND RISING BUTT HINGE


20941.1
20941.2
Dimension On Diagram
Height
102mm
102mm
A
Width
76mm
76mm
B
Leaf Width
26mm
26mm
C
When door is open at 90degrees rises by
5mm
5mm
D
Thickness
3mm
3mm
N/A

Important Info Before You Buy

  • Rising butt hinges are used on doors that need to be self closing but NOT fire rated
  • When the door is fully open at 90degrees the door will rise by approximately 5mm
  • Please note. Rising butt hinges are handed left or right







  • The below diagram shows how to determine when a LEFT hand rising butt is required
Diagram showing when a LEFT hand rising butt is required





  • The below diagram shows how to determine when a RIGHT hand rising butt is required
Diagram showing when a RIGHT hand rising butt is required
  • Suitable for wooden doors
  • Base material is a stainless steel ideal for internal or external use
  • Sold and priced in pairs & Come supplied screws
More Information
Item 20941
Item Code 20941
Finish Satin Stainless Steel
Sold Per Pair - (2 Hinges)
Availability Stock Item
Download PDF Data Sheet
