Scrigno Sliding Pocket Door Cassette System - Double Door Kit - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit

Catalogue Number:
40891
  • Time saving pre-assembled double sliding pocket door kit from Scrigno
  • Space saving.
  • Simple and quick installation.
  • Suits doors 35mm - 44mm thick.
  • Max door weight 100kg.
  • Endpost, crosspieces, cassette edge covers, door brushes and seals included with all Scrigno sliding pocket door systems.
Full Description Related Products
Product Name Price Qty
40891.1 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 686mm x 1981mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.2 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 762mm x 1981mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.3 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 838mm x 1981mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.4 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 914mm x 1981mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.5 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 626mm x 2040mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.6 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 726mm x 2040mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.7 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 826mm x 2040mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
40891.8 - Scrigno Sliding Pocket Door - Double Door Kit - 125mm Finished Wall Thickness - Door Size - 926mm x 2040mm - Supplied With White Melamine Jamb Kit
£788.74 £657.28

Per Kit
Enquire Now
  • The Scrigno (pronounced Scree-nio) sliding door gear system uses a pre-fabricated cassette system to create a double sliding pocket door set.
  • Unlike most other pocket door solutions available today, Scrigno systems come pre-fabricated. Just drop the supplied aluzinc cage into place, plaster over the opening and then you're ready to install the door of your choice on the hangers and sliding track provided.
  • Allows an interior door to slide and disappear into a "pocket" within the wall cavity.

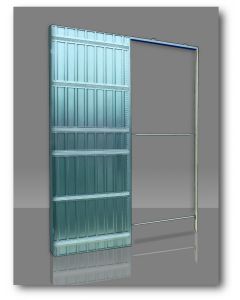

  • Each set includes all the main components needed to install a long lasting, smooth running sliding double door set, including a pre-made steel cassette pocket which is used to create the wall cavity or "pocket" for the door to slide into.
  • This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 125 mm.
  • Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
  • Suitable for doors up to 100kg in weight.
  • Suitable for use with timber doors only - door not included.
  • The Scrigno system comes supplied complete with timber lining - jamb kits.

Diagram showing parts of the Scrigno sliding pocket door gear system for double doors

Accessories Available To Suit The Scrigno Double Pocket Door System

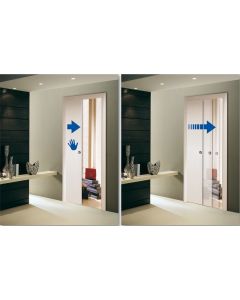

  • Soft close mechanism - to dampen softly close the sliding door. - (sold separately).

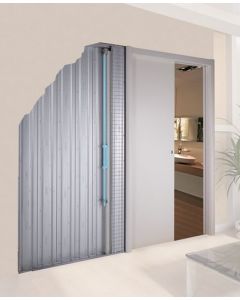

  • Self closing mechanism - automatically pulls the door closed each time the door had been opened. - (sold separately).

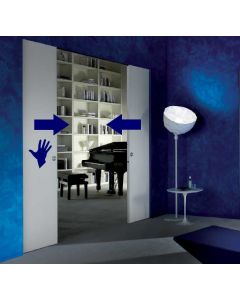

  • Double simultaneous opening and closing system - (sold separately).


Features & Benefits

  • Space saving - sliding doors help create up to 8% more living more space within a property
  • Easy access
  • Quiet operation
  • Easy installation
  • Economical
  • Prefabricated cassette design allows for very quick installation on site.

Dimensions - Frame Sizes & Door Kit Sizes Available

Dimensions of the Scrigno double sliding cassette pocket door system

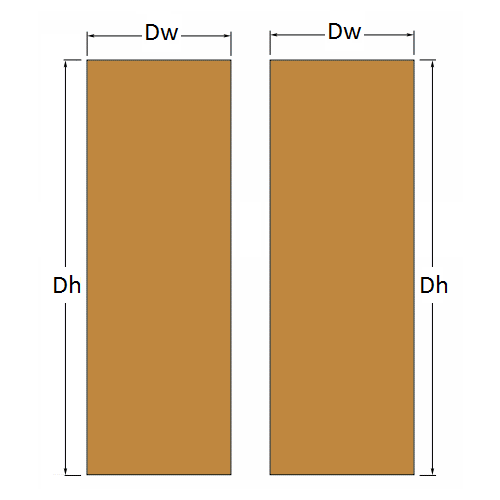

Diagram showing door dimensions for the Scrigno double sliding pocket door set

Item Code Door Size (Dw x Dh) Max Passage Size (L x H) Overall Frame Size (Li x Hi) Finished Wall Thickness (Pf)
40891.1 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) 1312mm x 1970mm 2832mm x 2080mm 125mm
40891.2 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) 1464mm x 1970mm 3084mm x 2080mm 125mm
40891.3 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) 1616mm x 1970mm 3536mm x 2080mm 125mm
40891.4 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) 1768mm x 1970mm 3688mm x 2080mm 125mm

40891.5 626mm x 2040mm - (Metric Doors) 1200mm x 2030mm 2520mm x 2140mm 125mm
40891.6 726mm x 2040mm - (Metric Doors) 1400mm x 2030mm 2920mm x 2140mm 125mm
40891.7 826mm x 2040mm - (Metric Doors) 1600mm x 2030mm 3320mm x 2140mm 125mm
40891.8 926mm x 2040mm - (Metric Doors) 1800mm x 2030mm 3720mm x 2140mm 125mm

  • Please note plasterboard is not provided with this kit and must be bought separately.


Items Included Within The Scrigno Double Pocket Sliding Door Kit

  • Metal cassette to create the "pockets"
  • Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
  • Roller bearing door hanger kits
  • Timber lining kit - (door jamb kit) including brush seals and rubber bumpers.



Installation Videos

More Information
Item 40891
Item Code 40891
Finish -
Dimensions 125mm Wall Thickness
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Download PDF Data Sheet
