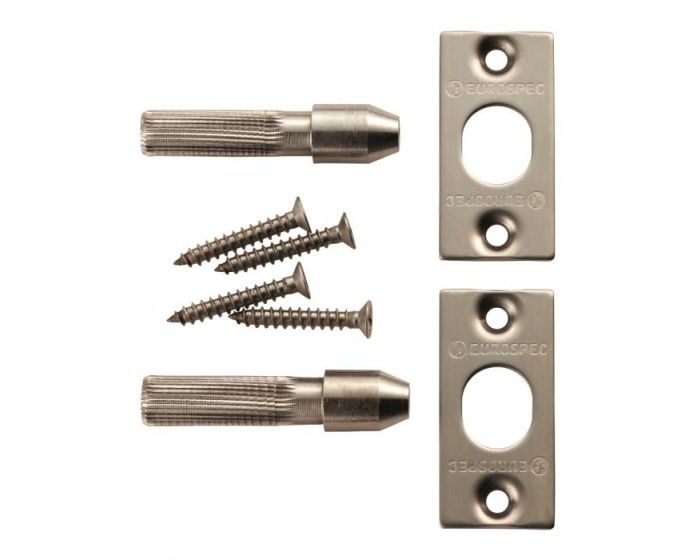

main product photo

Skip to the beginning of the images gallery

Security Hinge Bolts - Extra Security For External Doors - Pack of 2 - Grade 316 Satin Stainless Steel

Catalogue Number:

48181

Full Description

Product Name Price Qty

48181.1 - Security Hinge Bolt Set - Grade 316 Satin Stainless Steel - (Pair)

£11.68 £9.73

Per Pair

Pack of 2 hinge bolts

Hinge bolts are fitted to help prevent a door being forced open via the hinges

Ideal for use on external doors that open outwards

Bolts should be fitted 75mm below the top hinge and 75mm above bottom hinge for maximum effectiveness

Bolt needs a 9.5mm diameter hole drilled to a depth of 32mm in to door edge

A 22mm diameter hole drilled to a depth of 19mm is required on the door frame

Finish

Satin stainless steel - grade 316

Dimensions

Overall Length - 56.5mm
Projection From Door When fitted - 19.5mm
Bolt Diameter - 10mm
Stud Diameter - 13mm

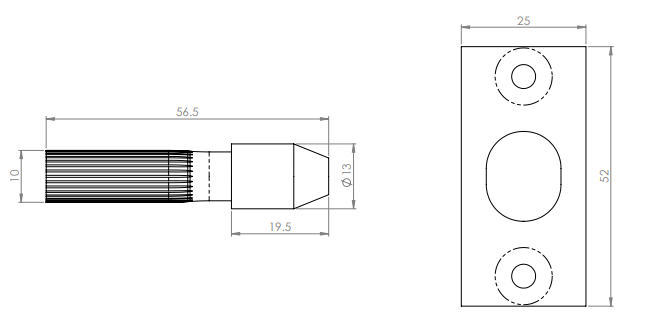

Hinge Bolts - Dimensions Diagram

Download PDF Data Sheet

More Information
Item	48181
Item Code	48181
Finish	Satin Stainless Steel - Grade 316
Sold Per	Pair - (Pack Of 2)
Availability	Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery
