Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism

Catalogue Number:

44492

Product Name Price Qty

44492.1 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 135mm Length (Can Be But Down To 75mm) - (Sold Individually - Each)

£2.54 £2.12

Per Each

44492.2 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 165mm Length (Can Be Cut Down To 95mm) Window Height - (Sold Individually - Each)

£2.98 £2.48

Per Each

44492.3 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 260mm Length (Can Be Cut Down to 165mm) - (Sold Individually - Each)

£3.52 £2.93

Per Each

44492.4 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 390mm Length (Can Be Cut Down To 265mm) - (Sold Individually - Each)

£5.06 £4.22

Per Each

44492.5 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 520mm Length (Can Be Cut Down To 390mm) - (Sold Individually - Each)

£6.34 £5.28

Per Each

44492.6 - Shoot Bolt Extension Rod To Suit Espagnolette Multipoint Window Gear Box Mechanism - 650mm Length (Can Be Cut Down To 525mm) - (Sold Individually - Each)

£7.86 £6.55

Per Each

Enquire Now

Description

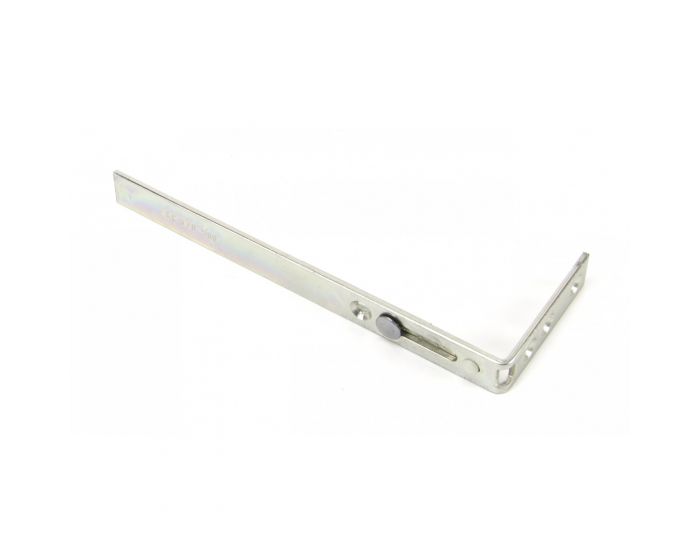

Shoot bolt extension rod to suit espagnolette multi-point window gear box mechanism.

The rods connect to the gear box mechanism to create locking points at the top and bottom of the window.

Rods are sold in singles - two are required per window.

Size Details

44492.1 - 135mm length (can be cust down to 75mm).

44492.2 - 165mm length (can be cut down to 95mm).

44492.3 - 260mm length (can be cut down to 195mm).

44492.4 - 390mm length (can be cut down to 265mm).

44492.5 - 520mm length (can be cut down to 390mm).

44492.6 - 650mm length (can be cut down to 525mm).

Extension Rod For Taller Windows.

For taller windows the height can be extended adding extension rods - see product 44494.

Additional Items Required (Sold Separately)

Multi-point window handles - view category

Gear box mechanism - see product 44490

Centre keep - see product 44491 - (2 required per window).

Shoot bolt keeps - see product 44493 - (2 required per window).

Download

Download PDF Data Sheet

Specification

More Information
Item	44492
Item Code	44492
Finish	Zinc Plated
Dimensions	Max Window Height 1470mm
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
