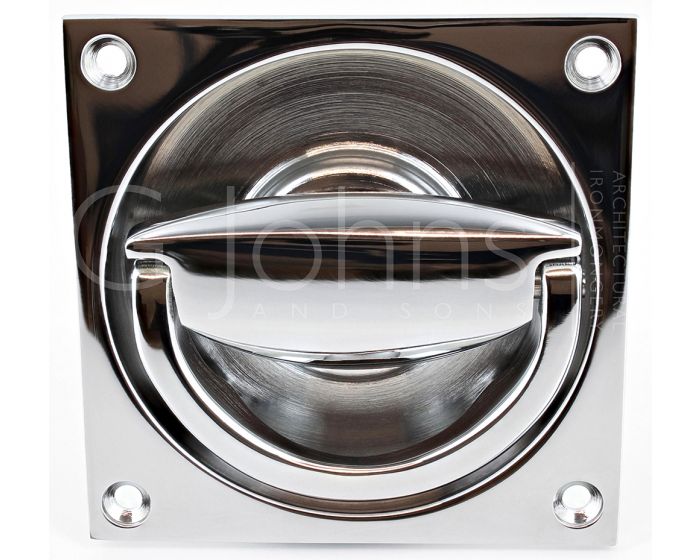

Flush Fitting Ring Style Operational Door Handle - Polished Chrome

Catalogue Number:
30271
Full Description
Product Name Price Qty
30271.2 - Flush Fitting Ring Style Operational Door Handle - Polished Chrome - 75mm x 75mm - Each
£121.18 £100.98

Per Each
Manufactured in England to high architectural quality in solid brass, the inset design is ideal for use on doors that need to fold back against a wall. This item has a highly polished, shiny chrome finish.

Designed to work with a tubular latch such as our TLS heavy duty latch, this item can be used as a working door handle. There is an 8mm follower built into back of the ring handle to suit a UK standard 8mm x 8mm spindle. This item is designed to be morticed (cut) into the face of a door so it sits flush with the surface.

This product is available one size - 75mm x 75mm (other sizes available to special order).
This item is not held in stock and is only made to order, hence the 3-4 week lead time. If you're looking for a product of the highest quality, it's well worth the wait.

Size Details

Diagram Showing Dimensions Of The 1085 Range Flush Fitting Ring Style Operation Door Handle



Item CodeHeight (A)Width (B)Recess Diameter (C)Recess Depth (D)Backplate Thickness - (E)Ring Pull Size (Internal Dimension) - (F)
30271.2 75mm 75mm 71mm 12mm 3mm 36mm

Base Material

  • Made from solid brass.

Finish Details

  • Polished chrome - highly polished, shiny finish.

Fixings

  • This handle is fitted via 4 x countersunk wood screws through the face of the backplate.
  • Supplied with matching wood screws.

Usage

  • If fitting two flush pulls to a door (one either side) in conjunction with a tubular latch the minimum thickness door required is 44mm.
  • Suitable for internal or external use.

Unit Of Sale

  • This item is sold individually - (Each)
More Information
Item 30271
Item Code 30271
Finish Polished Chrome
Sold Per Each - (Individually)
Availability Made to order product - please allow 5-6 weeks for delivery
Made to order product - please allow 5-6 weeks for delivery
Download PDF Data Sheet
