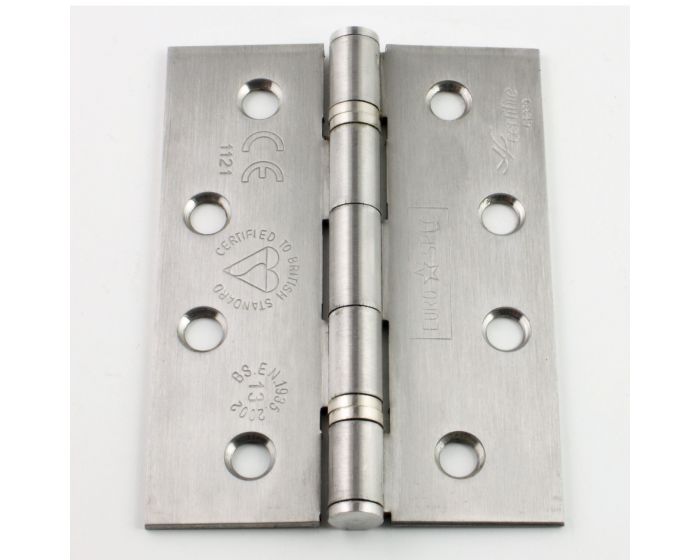

Slim Knuckle Grade 13 Fire Rated Hinges - CE / UKCA Marked - Certifire Approved - Satin Stainless Steel - 102mm x 76mm

Catalogue Number:
31151
Full Description Related Products
Product Name Price Qty
31151.1 - Slim Knuckle Grade 13 Fire Rated Hinges - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Satin Stainless Steel - Pair - (2 Hinges)
£10.48 £8.73

Per Pair
Enquire Now
  • Grade 13 ball bearing hinges -102mm x 76mm (4" x 3")
  • Slim Knuckle design - architectural quality.
  • Brushed (satin) finish
  •  One hour fire rated hinges suitable for use on internal or external timber doors
  • Tested and passed to the British / European standard BS EN 1935 suitable for use on fire doors up to 120kg in weight
  • Ball bearings located in the knuckle of hinge provide a smooth action, excellent strength and high wear-ability

Base Material

  • Stainless steel

Finish

  • Satin stainless steel - (brushed finish)

Alternative Finishes Available

  • Polished stainless steel

Dimensions

Diagram of the Eurospec SCH14325 slim knuckle grade 13 fire rated hinges

31151.1
Dimension On Diagram
Height (H)
102mm
A
Width (W)
76mm
B
Leaf Width
30mm
C
Knuckle Diameter
10mm
D
Thickness
3mm
N/A



Standards This Product Conforms To

  • Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-6-1-1-4-0-13.
  • *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
  • CE Marked / UKCA Marked

Classification Details

  • Durability grade 7 - tested to 200,000 opening & closing cycles
  • Test door mass grade 6 - suitable for use on doors up to 120kg in weight
  • Corrosion resistance grade 4 - high resistance to corrosion in accordance to EN 1670
  • Overall hinge grade 13


Useage

  • Suitable for use 44mm and 54mm thick wooden doors
  • To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

  • The 31151.1 hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
More Information
Item 31151
Item Code 31151
Finish Satin Stainless Steel
Dimensions 102mm x 76mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair - (2 Hinges)
Availability Stock product - please allow 1-3 days for delivery
Stock product - please allow 1-3 days for delivery
Download PDF Data Sheet
