Traditional Pattern Straight Design Universal Door Bolt - Two Sizes Available - Polished Chrome

Catalogue Number:
49183
Full Description
Product Name Price Qty
49183.1 - Traditional Pattern Straight Design Universal Door Bolt - 100mm x 25mm (4") - Polished Chrome - Each
ÂŁ34.44 ÂŁ28.70

Per Each
49183.2 - Traditional Pattern Straight Design Universal Door Bolt - 150mm x 40mm (6") - Polished Chrome - Each
ÂŁ55.61 ÂŁ46.34

Per Each
Enquire Now
  • Traditional pattern straight design universal door bolt
  • A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product
  • Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts
  • Designed for use on French windows (patio doors), front doors, back doors and cupboards
  • Suitable for inward or outward opening door (supplied with 3 x fixing plates)

Finish

  • Polished Chrome

Dimensions

  • Two sizes available
  • 100mm x 25mm (4")

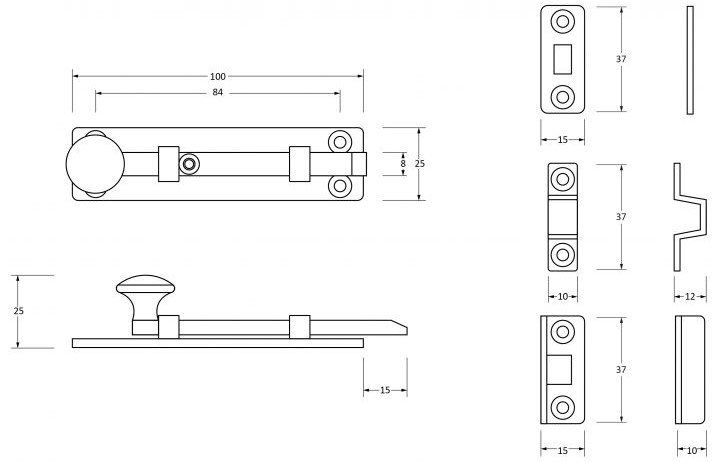

Traditional-Pattern-Straight-Design-Universal-Door-Bolt-4-Inch-Diagram

  • 156mm x 47mm (6")

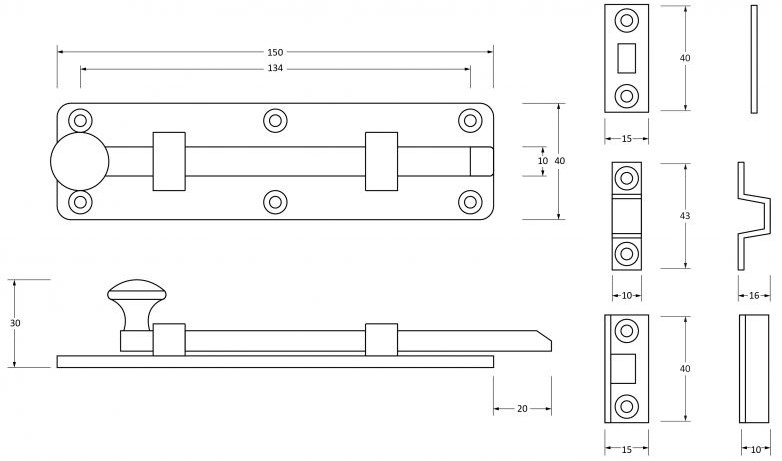

Traditional-Pattern-Straight-Design-Universal-Door-Bolt-6-Inch-Diagram

  • 3 Styles of recievers
  • Receiver Plate: 37mm x 15mm x 2mm
  • Receiver Bridge: 37mm x 10mm x 3mm (Height:12mm)
  • Angled Keep: 37mm x 15mm x 2mm (Depth:10mm)
  • Throw: 15mm

Important Info Before You Buy

  • Sold individually
  • Supplied with matching wood screws
More Information
Item 49183
Item Code 49183
Finish Polished Chrome
Dimensions 100mm x 25mm (4") & 150mm x 40mm (6")
Sold Per Each
Availability Non stock product - Please allow 3-7 days for delivery
Non stock product - Please allow 3-7 days for delivery
Download PDF Data Sheet
