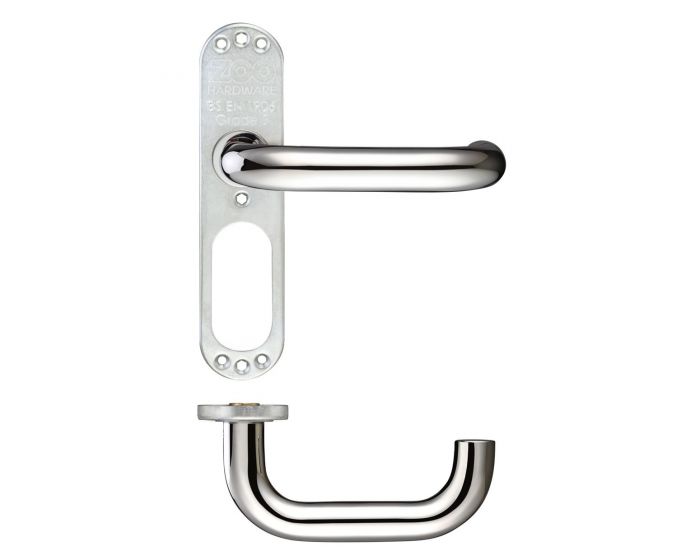

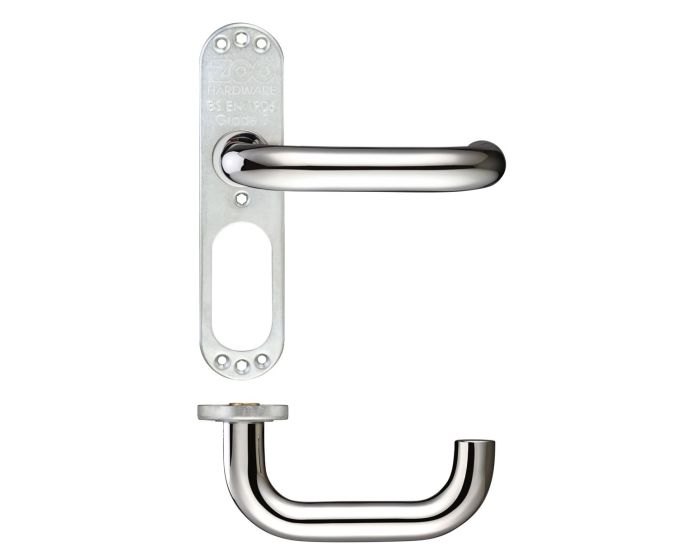

Tubular Return To Door Lever Handle - Push On Face Plates - Satin Stainless Steel

Catalogue Number:
44108
Full Description
Product Name Price Qty
44108.1 - Tubular Return To Door Lever Handle - Inner Plate - Satin Stainless Steel - Pair (Face Plates Sold Separately)
£17.28 £14.40

Per Pair
44108.2 - Lever Latch Cover Plate To Suit Tubular Return To Door Lever Handle - Satin Stainless Steel - Pair
£9.60 £8.00

Per Pair
44108.3 - Lever Lock Cover Plate To Suit Tubular Return To Door Lever Handle - Satin Stainless Steel - Pair
£9.60 £8.00

Per Pair
44108.4 - Bathroom Turn And Release Cover Plate To Suit Tubular Return To Door Lever Handle - Satin Stainless Steel - Pair
£15.91 £13.26

Per Pair
44108.5 - Lever Euro Profile Cover Plate To Suit Tubular Return To Door Lever Handle - Satin Stainless Steel - Pair
£9.60 £8.00

Per Pair
44108.6 - Lever Din Euro Profile Cover Plate To Suit Tubular Return To Door Lever Handle - Satin Stainless Steel - Pair
£9.60 £8.00

Per Pair
Enquire Now
  • Large backplate ideal for covering old marks from existing handles.
  • Concealed fixings, no screws shown once fitted.
  • Suitable for FD30/60 doors
  • BS EN 1906 Grade 3
  • Push on stainless steel outer covers available (click fast)
  • Available With 6 different face plate sold separately

Finish

  • Satin Stainless Steel

Base Material

  • 304 Grade stainless steel

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position

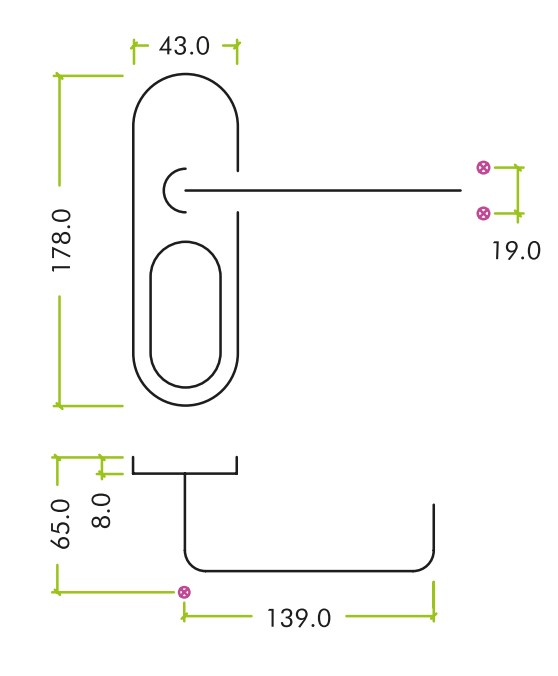

Dimensions

Tubular-Return-To-Door-Lever-Handle-Diagram

  • 178mm x 43mm
  • 19mm diameter lever

Cover Plate Size

  • 180mm x 45mm

Spindle Size

  • 8mm x 8mm square - UK Standard.

Fixings

  • Comes supplied with wood screws, M4 male and female bolt through bolts and spindle.

Usage

  • Suitable for domestic use.
  • Suitable for internal or external use.

Unit Of Sale

  • Sold in pairs.
  • Face plate sold separately
  • (One pair consists of 1x left hand and 1x right hand)
More Information
Item 44108
Item Code 44108
Finish Satin Stainless Steel
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
